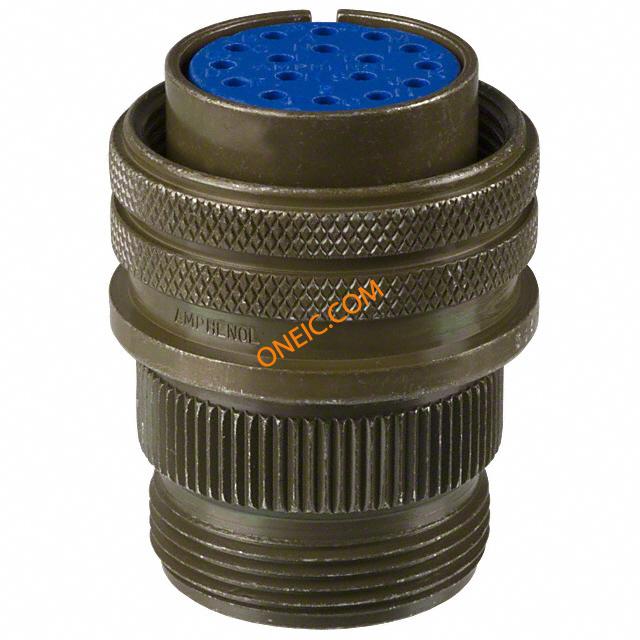

97-3106A-20-29S(946)
| 制造商 | |
| 描述 | Circular MIL Spec Connector 17P Strt Socket Plug Sz 20 Solder Blk Zn CONN PLUG 17POS W/SOCKETS connector;metal circ;str plug;size 20;17 #16 solder socket contact;black finish Circular Connector connector, metal circ, str plug, size 20, 17 #16 solder socket contact, black finish |
| 分类 |
商业参数
| 产品类别 | Circular MIL Spec Connector | 标准包装数量 | 1 |
合规参数
| RoHS | Compliant | MIL类型 | MIL-DTL-5015 |
| 海关税号 | 00000000 | 认证机构标志 | UL Recognized/CSA |
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 13A |
机械参数
| 重量 | 0.073 | 包装方式 | Bulk |
| 出线方向 | Solid | 外壳尺寸 | 20 |
| 导线线规 | 22-16 | 方向 | N (Normal) |
| 外壳样式 | In-Line | 端接方式 | Solder Cup |
| 触头类型 | Socket | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Black Zinc Alloy | 行程角度 | Straight |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Olive Drab Cadmium |
| 安装样式 | Free Hanging | 封装形式 | Metal |
| 外壳材料（壳体） | Aluminum Alloy | 连接器用途 | Threaded |
| 插入角度 | 20-29 | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 端接样式 | Solder |
| 第一触头极性 | Socket (Female) | 触点数 | 17 |
| 介电材料 | Diallyl-Phthalate | 位数 | 17 |
| 外壳尺寸-插件 | 20-29 | 外壳材料及表面处理 | Aluminum, Zinc Plated, Black |
| 典型触点布局 | 17#16 | ||
产品信息
| 类型 | Cable Plug | 类别 | A |
| 系列 | 97 | 产品特性 | Environmental Resistant, Single Key/Keyway Shell Polarization |
| 制造商全称 | 97 Series | 产品子类型 | Plugs |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
