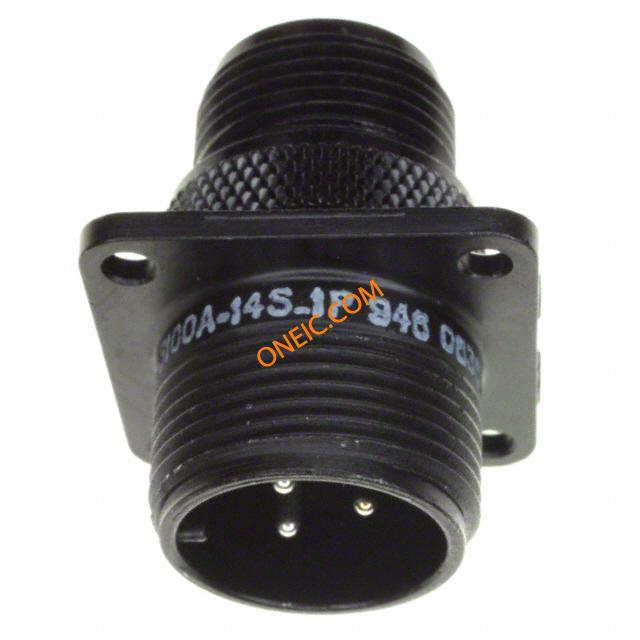

97-3100A-14S-1P(946)
| 制造商 | |
| 描述 | Circular MIL Spec Connector 3P Sz 14S Wall Mount Pin Recept Solder MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT WALL MNT 3POS W/PINS connector;metal circ;wall recept;size 14s;3 #16 solder pin cont;black finish connector, metal circ, wall recept, size 14s, 3 #16 solder pin cont, black finish |
| 分类 |
商业参数
| 产品类别 | Circular MIL Spec Connector | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | MIL类型 | MIL-DTL-5015 |
| 认证机构标志 | UL Recognized/CSA | ||
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 13 A |
机械参数
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 14 | 导线线规 | 16 |
| 方向 | N (Normal) | 外壳样式 | Potting |
| 端接方式 | Solder Cup | 触头类型 | pin contacts |
| 安装类型 | Straight | 外壳镀层 | Olive Drab Chromate over Cadmium |
| 行程角度 | Straight | 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 安装样式 | Wire |
| 封装形式 | Metal | 外壳材料（壳体） | Aluminum Alloy |
| 连接器用途 | Threaded | 插入角度 | 14S-1 |
| 触头材料 | Copper Alloy | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 配接方向 | Threaded |
| 触点数 | 3 | 介电材料 | Diallyl-Phthalate |
| 位数 | 3 | 外壳尺寸-插件 | 14S-1 |
| 安装孔直径 | 0.12 " | 外壳材料及表面处理 | Aluminum, Zinc Plated, Black |
| 典型触点布局 | 3#16 | ||
产品信息
| 类型 | Panel Socket | 类别 | A |
| 系列 | 97 | 产品特性 | Environmental Resistant, Single Key/Keyway Shell Polarization |
| 制造商全称 | 97 Series | 产品子类型 | Receptacles |
| 插入配置 | 14S-1 | 应用细节 | Commercial |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
97-3057-1007(621)
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Black Zinc Alloy CONN CBL CLAMP SZ 12SL, 14, 14S connector accessory;ms3057 cable clamp;connector sizes 12sl;14;14s;black zinc Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 12SL, 14, 14S CABLE CLAMP, SIZE 12SL, 14, 14S CABLE CLAMP, 97 MIL-C-5015 CONNECTOR connector accessory, ms3057 cable clamp, connector sizes 12sl, 14, 14s, black zinc
.jpg&w=3840&q=75)

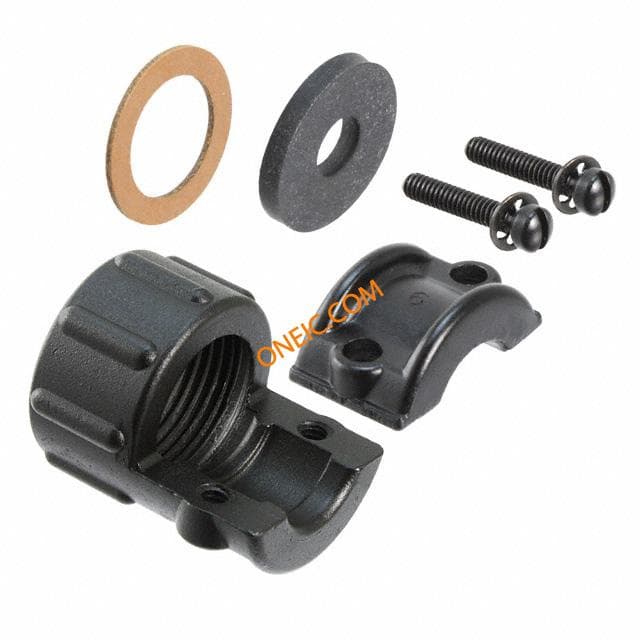

97-3057-6(621)
