点击放大查看

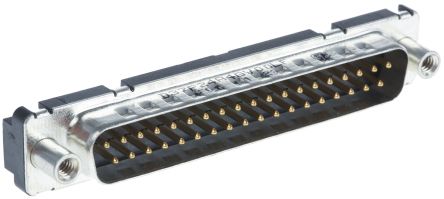

D37P24A4GV00LF
| 制造商 | Amphenol Corporation |
| 描述 | 37 Position D-Sub Plug, Male Pins Connector, Through Hole Solder Amphenol FCI Delta D 系列 2.76mm 节距 37 路 直向 通孔安装 PCB D-sub 连接器 插头 37P MALE STRAIGHT |
合规参数
| 汽车级 | NO | 无铅定义 | RoHS-conform |
电气参数
| 额定电压 | 300 V 交流 | ||
机械参数
| 深度 | 12.55mm | 间距 | 2.76mm |
| 宽度 | 11.7mm | 长度 | 69.32mm |
| 包装方式 | TRAY | 方向 | 直 |
| 触头类型 | MALE | 安装类型 | 通孔 |
| 连接器类型 | 公插 | 接触镀层 | 金镀镍 |
| 尺寸/外形 | 69.32 x 11.7 x 12.55mm | 触点数 | 37 |
产品信息
| 系列 | Delta D | ||
文档与媒体
相关型号
D37S81C6GX00LF
Amphenol FCI
37 Position D-Sub Receptacle, Female Sockets Connector, Through Hole, Right Angle Press-Fit
D37S24A6GL00LF
Amphenol FCI
37 Position D-Sub Receptacle, Female Sockets Connector, Through Hole Solder
D37S91C6GV00
Amphenol FCI
37 Position D-Sub Receptacle, Female Sockets Connector, Through Hole Press-Fit
D37S82C6GL00LF
Amphenol FCI
37 Position D-Sub Receptacle, Female Sockets Connector, Through Hole, Right Angle Press-Fit
D37S91C6PV00LF
Amphenol FCI
37 Position D-Sub Receptacle, Female Sockets Connector, Through Hole Press-Fit
D37S90C6GX00LF
Amphenol FCI
37 Position D-Sub Receptacle, Female Sockets Connector, Through Hole Press-Fit
D37S91C6GX00LF
Amphenol FCI
37 Position D-Sub Receptacle, Female Sockets Connector, Through Hole Press-Fit
D37S24B4GV00LF
Amphenol FCI
37 Position D-Sub Receptacle, Female Sockets Connector, Through Hole Solder
D37S91C6GL00LF
Amphenol FCI
37 Position D-Sub Receptacle, Female Sockets Connector, Through Hole Press-Fit
D37S24A6PA00LF
Amphenol FCI
37 Position D-Sub Receptacle, Female Sockets Connector, Through Hole Solder
D37S90C6PV00LF
Amphenol FCI
37 Position D-Sub Receptacle, Female Sockets Connector, Through Hole Press-Fit
D37S91C6PX00LF
Amphenol FCI
37 Position D-Sub Receptacle, Female Sockets Connector, Through Hole Press-Fit
D37S24A4PA00LF
Amphenol FCI
37 Position D-Sub Receptacle, Female Sockets Connector, Through Hole Solder
D37S24B4PX00LF
Amphenol FCI
37 Position D-Sub Receptacle, Female Sockets Connector, Through Hole Solder
D37S91C6PA00LF
Amphenol FCI
37 Position D-Sub Receptacle, Female Sockets Connector, Through Hole Press-Fit
D37S24B4PL00LF
Amphenol FCI
37 Position D-Sub Receptacle, Female Sockets Connector, Through Hole Solder

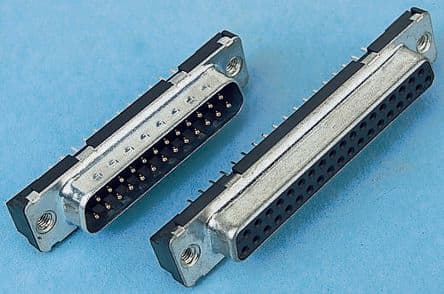

D37S24A4PL00LF
