65240-018LF
| 制造商 | Amphenol Corporation |
| 描述 | CONN HOUSING 18POS .100 SINGLE Crimp housing 2.54 mm Poles 18 Dubox, 65240-018LF, Amphenol/FCI |
合规参数
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 测试电压 | 1000 | 额定电压 | 250 |
| 极数 | 18 | 接触电阻 | ≤15 mOhm |
| 最大额定电流 | 3 A | 绝缘电阻 | 100 GOhm |
机械参数
| 间距 | 2.54 | 触头材料 | Ni+Au |
| 壳体材料 | Glass fibre (GF) | ||
产品信息
| 系列 | Dubox | 连接方式 | Wire-Board |
环境参数
| 工作温度 | -65...+125 °C | ||
文档与媒体
相关型号
76357-301LF
Amphenol FCI
CONN SOCKET CRIMP 22-30AWG GOLD Crimp socket Female 30...22 AWG, 76357-301LF, Amphenol/FCI Amphenol FCI DUBOX 系列 母 压接接线端子, 压接, 镀金镀镍触点 CONTACT AWG 22-30
76347-401LF
Amphenol FCI
CONN SOCKET 22-30AWG TIN CRIMP CONTACT CRIMP AWG 22-30
76347-412LF
Amphenol FCI
CONN SOCKET 20-22AWG TIN CRIMP
76347-341LF
Amphenol FCI
CONN SOCKET 28-32AWG GOLD CRIMP
76347-412
Amphenol FCI
CONN SOCKET 20-22AWG TIN CRIMP
76347-401
Amphenol FCI
CONN SOCKET 22-30AWG TIN CRIMP
76347-402
Amphenol FCI
CONN SOCKET 22-30AWG TIN CRIMP
76347-403
Amphenol FCI
CONN SOCKET 22-30AWG TIN CRIMP
76347-441
Amphenol FCI
CONN SOCKET 28-32AWG TIN CRIMP
76357-401
Amphenol FCI
CONN SOCKET CRIMP 22-30AWG TIN
76347-403LF
Amphenol FCI
CONN SOCKET 22-30AWG TIN CRIMP Amphenol FCI DUBOX 系列 母 压接接线端子, 压接, 镀锡镀镍触点
76347-441LF
Amphenol FCI
CONN SOCKET 28-32AWG TIN CRIMP
76357-401LF
Amphenol FCI
CONN SOCKET CRIMP 22-30AWG TIN Amphenol FCI DUBOX 系列 母 压接接线端子, 压接, 镀锡镀镍触点
76347-411LF
Amphenol FCI
CONN SOCKET 20-22AWG TIN CRIMP
76357-311LF
Amphenol FCI
CONN SOCKET 20AWG GOLD CRIMP
76357-411LF
Amphenol FCI
CONN SOCKET 20AWG TIN CRIMP
76384-318LF
Amphenol FCI
18 Positions Header, Shrouded Connector 0.100" (2.54mm) Through Hole Gold, GXT™ Pin header, Dubox 18-pin 2.54 mm Poles 18 Dubox, 76384-318LF, Amphenol/FCI
76384-418LF
Amphenol FCI
18 Positions Header, Shrouded Connector 0.100" (2.54mm) Through Hole Tin
76382-418LF
Amphenol FCI
18 Positions Header, Shrouded Connector 0.100" (2.54mm) Through Hole, Right Angle Tin

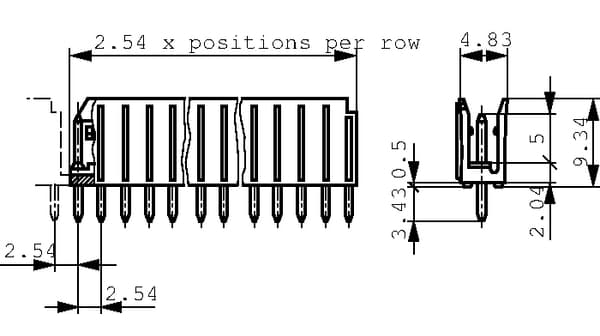

76382-318LF
