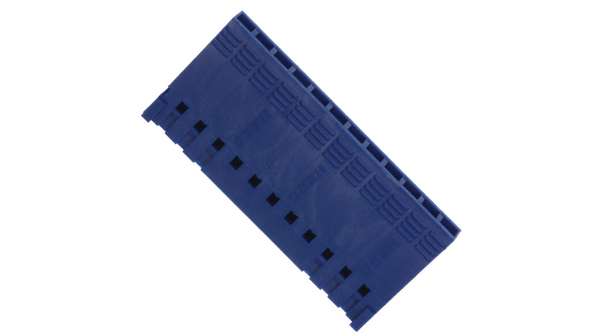

65240-012LF
| 制造商 | Amphenol Corporation |
| 描述 | CONN HOUSING 12POS .100" SINGLE Crimp housing 2.54 mm Poles 12 Dubox, 65240-012LF, Amphenol/FCI |
合规参数
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 测试电压 | 1000 | 额定电压 | 250 |
| 极数 | 12 | 接触电阻 | ≤15 mOhm |
| 最大额定电流 | 3 A | 绝缘电阻 | 100 GOhm |
机械参数
| 间距 | 2.54 | 触头材料 | Ni+Au |
| 壳体材料 | Glass fibre (GF) | ||
产品信息
| 系列 | Dubox | 连接方式 | Wire-Board |
环境参数
| 工作温度 | -65...+125 °C | ||
