点击放大查看

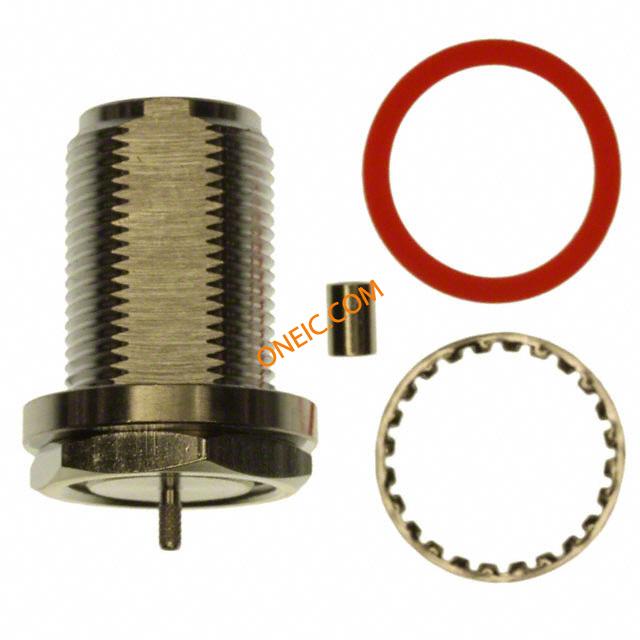

172313
| 制造商 | |
| 描述 | Conn Type N F 0Hz to 11GHz 50Ohm Crimp ST Panel Mount Gold CONN N JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors N BULKHEAD JACK 178, 196 N TYPE, N BLKHD JK 178, 196 |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1440 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bag |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 1500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | ||
机械参数
| 重量 | 1.315719 oz | 包装方式 | Bulk |
| 本体表面处理 | White Bronze | 电缆组 | RG-178, 196 |
| 方向 | Straight | 端接方式 | Crimp |
| 基体材料 | Brass | 外壳颜色 | Gold |
| 安装类型 | Panel Mount | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 连接器样式 | N Type | 触头材料 | Phosphor Bronze |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
产品信息
| 类型 | Type N | 连接器性别 | F |
| 极性 | Standard | 连接类型 | Coaxial Cable |
| 射频系列/标准 | 172313 | ||
环境参数
| 插拔次数 | 500 | 防护等级 | Weatherproof |
| 工作温度 | -65°C ~ 165°C | ||
