点击放大查看

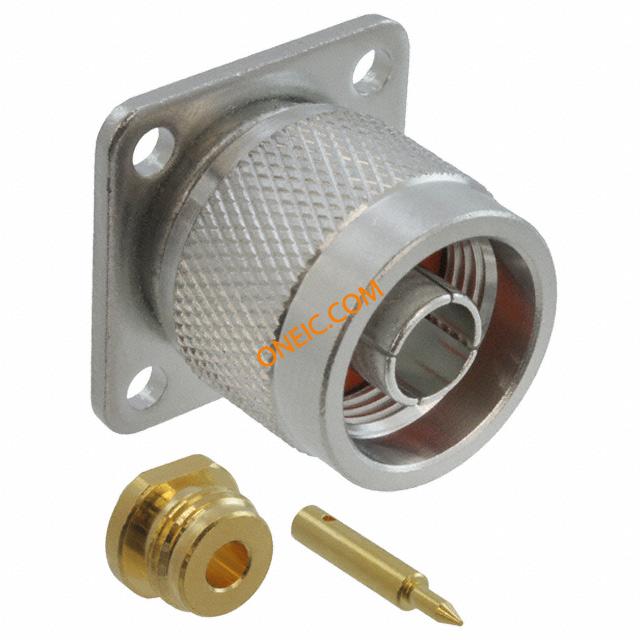

172309
| 制造商 | |
| 描述 | N PANEL PLUG .141 CONN N JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors N PANEL PLUG .141 N TYPE, N PANEL PLUG .141 |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX2000 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 1500V |
| 耦合系数 | Threaded | 最大频率 | 11GHz |
机械参数
| 包装方式 | Bulk | 电缆类型 | 0.141 Semi-Rigid |
| 本体表面处理 | White Bronze | 电缆组 | RG-402 (.141" Semi Rigid) |
| 方向 | Straight | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Panel Mount, Square Flange |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Threaded | 连接器样式 | N Type |
| 触头材料 | Brass | 端接样式 | Cable - Solder |
| 屏蔽层端接方式 | Solder | 接触件端接 | Crimp or Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | Straight |
产品信息
| 连接器性别 | Jack | 极性 | Standard |
| 射频系列/标准 | N | ||
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
