点击放大查看

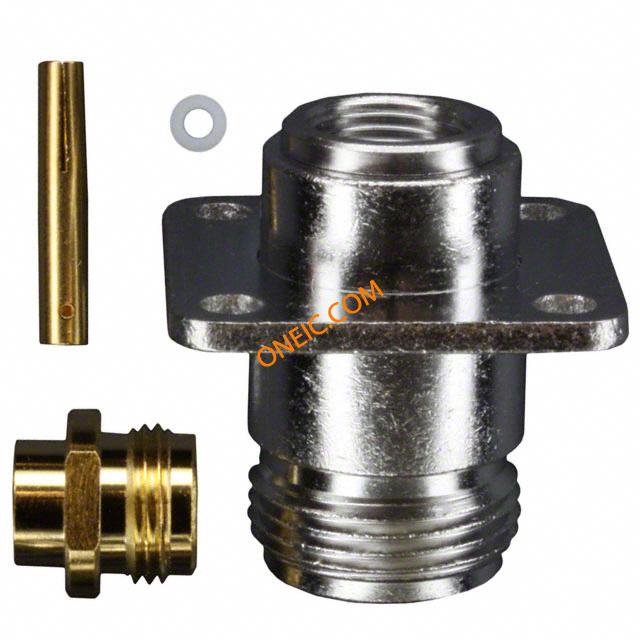

172300
| 制造商 | |
| 描述 | N PANEL JACK SOLDER .250 S/R RF Connectors N PANEL JACK SOLDER .250 S/R CONN N JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors N PANEL JACK SOLDER .250 S/R N TYPE, N PANEL JACK SOLDER .250 S/R |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1483 |
| 零件号别名 | 319-0396 | 产品类别 | RF Connectors |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | ||
电气参数
| 阻抗 | 50 Ohms | 额定电压 | 1500V |
| 耦合系数 | Threaded | 最大频率 | 11 GHz |
机械参数
| 重量 | 1.269863 oz | 包装方式 | Bulk |
| 电缆类型 | 0.25 Semi-Rigid | 本体表面处理 | Nickel |
| 电缆组 | RG-401 (.250" Semi Rigid) | 方向 | Straight |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Panel Mount, Square Flange | 外壳镀层 | Nickel |
| 连接器类型 | Straight Solder Jack | 接触镀层 | Gold |
| 紧固类型 | Threaded | 连接器样式 | N Type |
| 触头材料 | Phosphor Bronze | 壳体材料 | Brass |
| 端接样式 | Solder | 屏蔽层端接方式 | Solder |
| 接触件端接 | Crimp or Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | Straight | ||
产品信息
| 连接器性别 | Receptacle (Female) | 极性 | Normal |
| 射频系列/标准 | N | ||
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
