172270-11
| 制造商 | |
| 描述 | N, JK BNC D-HOLE KINGS 79-93 CONN N JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors N JACK BNC D-HOLE KINGS 79-93 N TYPE, N, JK BNC D-HOLE KINGS 79-93 |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 172270-11 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant By Exemption | ||
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 1500V |
| 耦合系数 | Threaded | 最大频率 | 11GHz |
| 绝缘电阻 | 5000 MOhms | ||
机械参数
| 重量 | 0.656801 oz | 包装方式 | Bulk |
| 本体表面处理 | White Bronze | 方向 | Straight |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Panel Mount, Bulkhead - Front Side Nut | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 连接器样式 | N Type | 触头材料 | Beryllium Copper |
| 端接样式 | Solder Cup | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder Cup | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Beryllium Copper |
| 供应商器件封装 | Bulkhead | ||
产品信息
| 连接器性别 | Jack | 极性 | Standard |
| 射频系列/标准 | N | ||
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
文档与媒体
相关型号

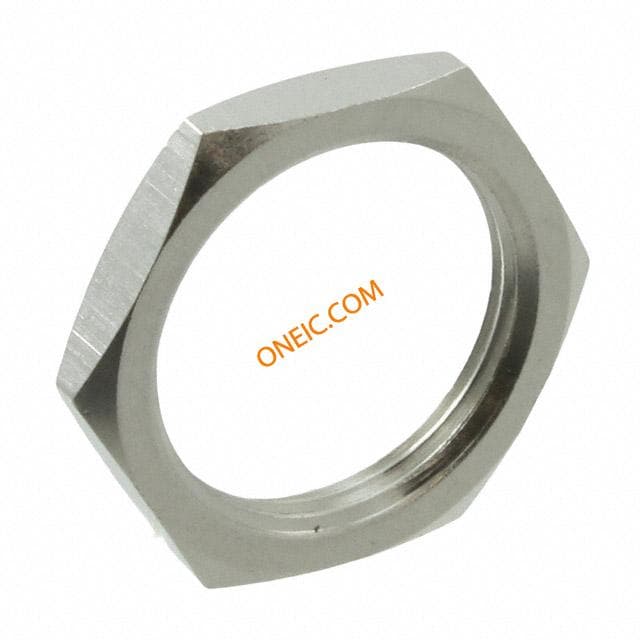

172-HEXNUT
