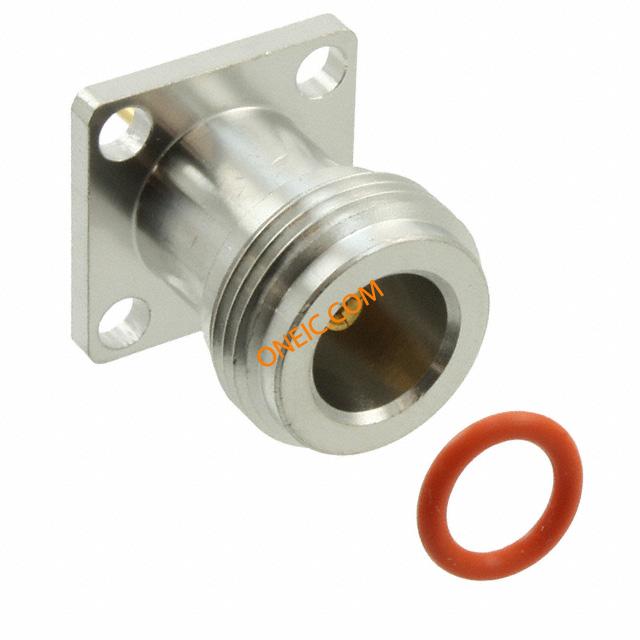

点击放大查看
172254
| 制造商 | |
| 描述 | RF Connectors N PANEL RECPTACLE TEFLON CONN N JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors N PANEL RECPTACLE TEFLON Conn Type N RCP 0Hz to 11GHz 50Ohm Solder ST Panel Mount Gold N TYPE, N PANEL RECPT EXT TEFLON |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1933 |
| 产品类别 | RF Connectors | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant By Exemption | 抗辐射加固 | No |
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 1500V |
| 耦合系数 | Threaded | 最大频率 | 11GHz |
机械参数
| 深度 | 17.5 mm | 高度 | 17.5 mm |
| 重量 | 0.573555 oz | 包装方式 | Bulk |
| 本体表面处理 | White Bronze | 方向 | Straight |
| 端接方式 | Solder | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Panel Mount, Square Flange |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 壳体镀层 | White Bronze | 连接器样式 | N Type |
| 触头材料 | Phosphor Bronze | 总长度 | 27.8 mm |
| 端接样式 | Round Post | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | Type N | 连接器性别 | Receptacle (Female) |
| 产品特性 | Extended Insulation | 极性 | Normal |
| 射频系列/标准 | N | ||
环境参数
| 插拔次数 | 500 | 防护等级 | Weatherproof |
| 工作温度 | -65°C ~ 165°C | ||
