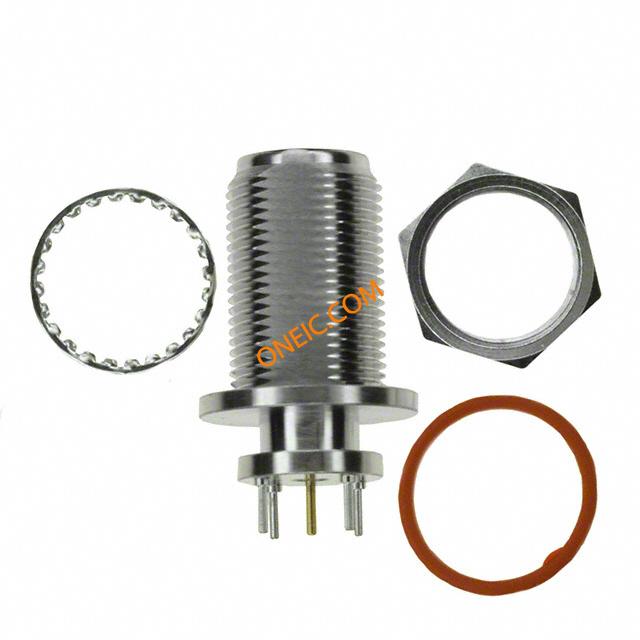

| 描述 | RF Connectors N PCB BULKHEAD RECEPTACLE Conn Type N RCP 0Hz to 11GHz 50Ohm Solder ST Thru-Hole Gold CONN N JACK STR 50 OHM PCB RF Connectors / Coaxial Connectors N PCB BULKHEAD RECEPTACLE RF/COAXIAL, N BHD JACK, STR, 50 OHM, THD connector, rf coaxial, n bulkhead pcb receptacle jack, vertical, 50 ohm |
| 分类 |
商业参数
| 产品 | PCB Connectors | 其他名称 | ACX1442 |
| 零件号别名 | 319-0528 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 11G | 阻抗 | 50 Ohm |
| 额定电压 | 1500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | ||
机械参数
| 高度 | 33.17 | 重量 | 1.400376 oz |
| 直径 | 22 | 包装方式 | Bulk |
| 电缆类型 | :- | 本体表面处理 | Nickel |
| 方向 | Straight | 端接方式 | Solder |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Through Hole | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Nickel |
| 壳体镀层 | Nickel | 连接器样式 | N Type |
| 连接器用途 | Threaded | 触头材料 | Phosphor Bronze|Beryllium Copper |
| 壳体材料 | Brass | 主要材料 | N |
| 端接样式 | PCB - Through Hole | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Beryllium Copper | 供应商器件封装 | Bulkhead |
产品信息
| 类型 | Type N | 连接器性别 | RCP |
| 系列 | :- | 极性 | Standard |
| 连接类型 | PCB | 射频系列/标准 | N |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 防护等级 | Weatherproof |
| 工作温度 | -65°C ~ 165°C | ||
