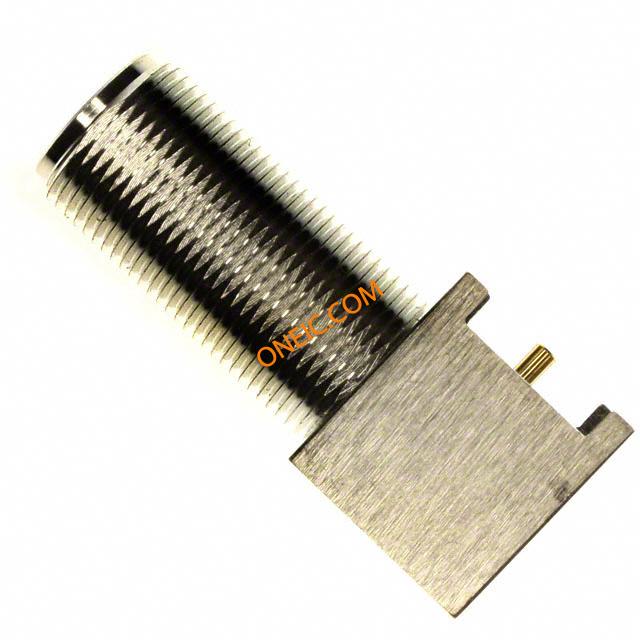

点击放大查看
172234
| 制造商 | |
| 描述 | Conn Type N RCP 0Hz to 11GHz 50Ohm Solder RA Thru-Hole Gold CONN N JACK R/A 50 OHM PCB RF Connectors / Coaxial Connectors N RIGHT ANGLE PLUG STD CABLE SOLDER RF/COAXIAL, N JACK, R/A, 50 OHM, THD N TYPE, N RT |
| 分类 |
商业参数
| 产品 | PCB Connectors | 其他名称 | ACX1443 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bag |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 1500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | ||
机械参数
| 重量 | 3 oz | 包装方式 | Bulk |
| 电缆类型 | :(Not Applicable) | 本体表面处理 | Tin |
| 方向 | Right Angle | 端接方式 | Solder |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Through Hole | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 连接器样式 | N Type | 触头材料 | Beryllium Copper |
| 端接样式 | PCB - Through Hole | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Beryllium Copper |
| 供应商器件封装 | Right Angle | ||
产品信息
| 类型 | Type N | 连接器性别 | RCP |
| 系列 | :- | 极性 | Standard |
| 连接类型 | PCB | 射频系列/标准 | N |
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
