172219
| 制造商 | Amphenol Corporation |

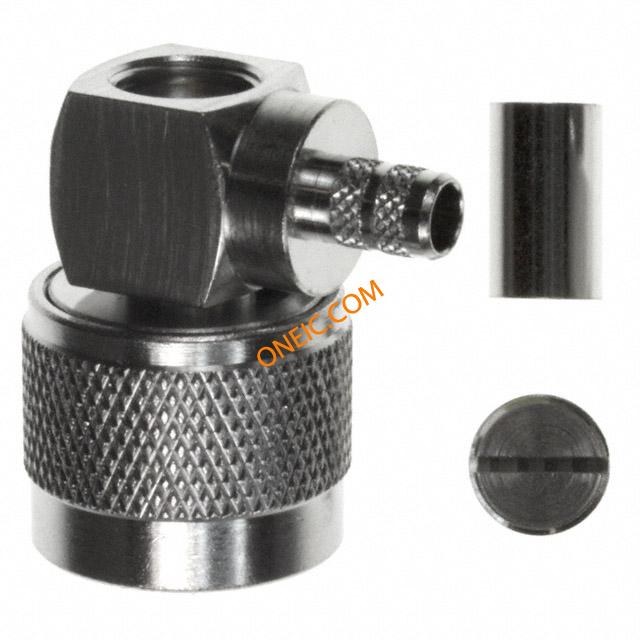

| 描述 | Conn Type N PL 0Hz to 11GHz 50Ohm Crimp RA Cable Mount Gold CONN N PLUG R/A 50 OHM SOLDER RF Connectors / Coaxial Connectors N RIGHT ANGLE PLUG STD CABLE CRIMP RF/COAXIAL, N PLUG, R/A, 50 OHM, CRIMP Connector; RF; N; Right Angle; Cable Plug; 50 Ohm 172219 Type-N Male Crimp Connector, Right Angle, Knurled Nut |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1658 |
| 零件号别名 | 92C6744 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 1500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | ||
机械参数
| 重量 | 1.650821 oz | 包装方式 | Bulk |
| 电缆类型 | RG-8X, Belden 7808A, LMR240 | 本体表面处理 | White Bronze |
| 电缆组 | RG-8/X, LMR-240 | 方向 | Right Angle |
| 端接方式 | Crimp | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Cable Mount |
| 行程角度 | Right Angle | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 外壳涂层 | Nexcote | 连接器样式 | N Type |
| 连接器用途 | Threaded | 触头材料 | Brass |
| 壳体材料 | Brass | 端接样式 | Cable - Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | Straight |
产品信息
| 类型 | Type N | 连接器性别 | PL |
| 极性 | Standard | 连接类型 | Coaxial Cable |
| 射频系列/标准 | 172219 | 应用细节 | Commercial |
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
