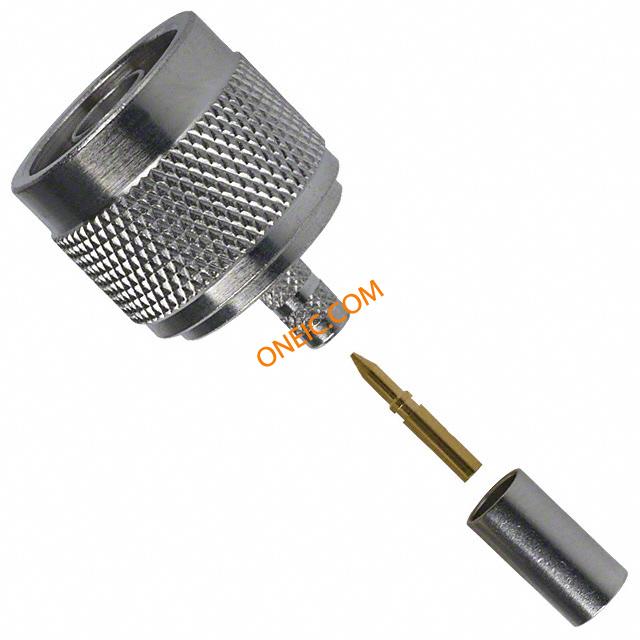

点击放大查看
172214
| 制造商 | Amphenol Corporation |
| 描述 | Conn Type N PL 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold RF Connectors N STRAIGHT CRIMP PLUG LMR 200 CONN N PLUG STR 50 OHM CRIMP connector;rf coaxial;n str crimp plug;captive cont;for LMR200 cable;50 ohm RF Connectors / Coaxial Connectors N STRAIGHT CRIMP PLUG LMR 200 RF/COAXIAL, N PLUG, STR, 50 OHM, CRIMP connector, rf coaxial, n str crimp plug, captive cont, for LMR200 cable, 50 ohm |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1121 |
| 零件号别名 | 319-0095 92C6741 | 产品类别 | RF Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 1.5 KV | 耦合系数 | Threaded |
| 最大频率 | 11 GHz | 绝缘电阻 | 5000 Megohms (Min.) |
机械参数
| 长度 | 1.044 in. | 重量 | 1.116774 oz |
| 直径 | 21 | 包装方式 | Bulk |
| 电缆类型 | Belden 7807A, LMR200 | 本体表面处理 | White Bronze |
| 电缆组 | LMR-200 | 方向 | Straight |
| 端接方式 | Crimp | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Crimp/Solder Attachments for Flexible and Semi-Rigid Cable |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 外壳涂层 | Nexcote | 内径（孔径） | 0.13 in. |
| 外径（标称值） | 0.181 in. | 壳体镀层 | Nickel |
| 连接器样式 | N Type | 连接器用途 | Threaded |
| 触头材料 | Brass | 壳体材料 | Brass |
| 总长度 | 26.5 | 主要材料 | N |
| 端接样式 | Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | Straight |
产品信息
| 类型 | Type N | 连接器性别 | PL |
| 产品特性 | Captivated Contact | 极性 | Normal |
| 连接类型 | Coaxial Cable | 射频系列/标准 | 172214 |
| 应用细节 | Commercial | 适用产品/相关产品 | LMR200 |
环境参数
| 插拔次数 | 500 | 温度范围 | -65 to +165 °C |
| 工作温度 | -65°C ~ 165°C | ||
