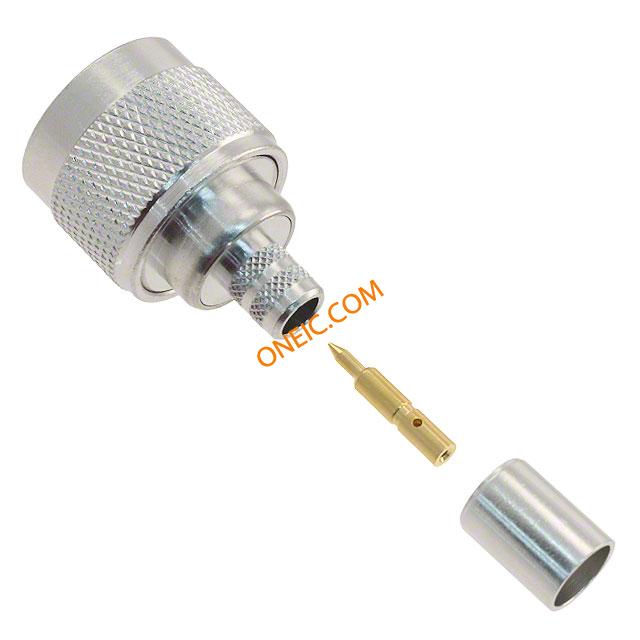

172202
| 制造商 | |
| 描述 | Conn Type N PL 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold CONN N PLUG STR 50 OHM CRIMP connector;rf coaxial;n straight crimp plug;captive contact;for rg6;50 ohm RF Connectors / Coaxial Connectors N STRAGHT CRIMP PLUG RG-6 RF/COAXIAL, N, PLUG, 50 OHM, CABLE, CRIMP connector, rf coaxial, n straight crimp plug, captive contact, for rg6, 50 ohm |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1851 |
| 零件号别名 | 319-0382 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 1500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | ||
机械参数
| 重量 | 1.202137 oz | 直径 | 21 |
| 包装方式 | Bulk | 电缆类型 | RG-6, RG-143, RG-212, Belden 3092, Belden 3903 |
| 本体表面处理 | White Bronze | 电缆组 | RG-6 |
| 方向 | Straight | 端接方式 | Crimp |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Nickel |
| 壳体镀层 | Nickel | 连接器样式 | N Type |
| 连接器用途 | Threaded | 触头材料 | Brass |
| 壳体材料 | Brass | 总长度 | 29.8 |
| 主要材料 | N | 端接样式 | Cable - Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | Type N | 连接器性别 | PL |
| 产品特性 | Captivated Contact | 极性 | Standard |
| 连接类型 | Flexible Cable | 射频系列/标准 | 172202 |
| 应用细节 | Commercial | 适用产品/相关产品 | RG 6 |
环境参数
| 插拔次数 | 500 | 温度范围 | -65 to +165 °C |
| 防护等级 | Weatherproof | 工作温度 | -65°C ~ 165°C |
