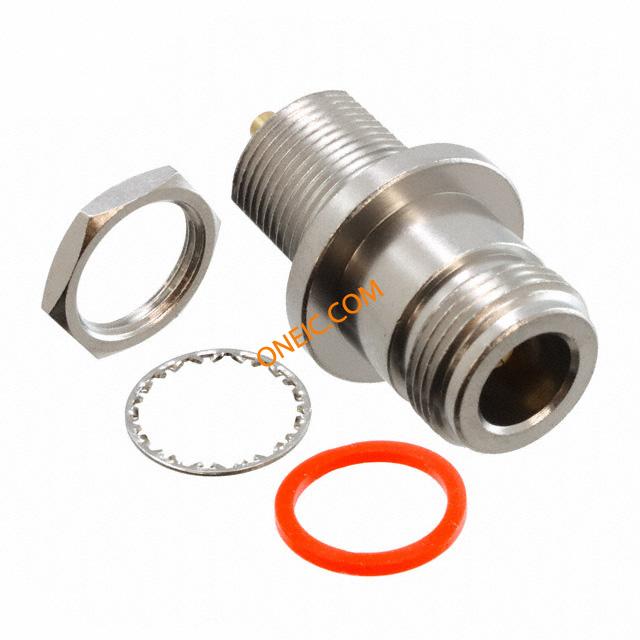

172185
| 制造商 | |
| 描述 | RF Connectors N BLKHEAD JACK FRONT MOUNT SOLDER CUP Conn Type N RCP 0Hz to 11GHz 50Ohm Solder Cup ST Panel Mount Gold CONN N JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors N BLKHEAD JACK FRONT MOUNT SOLDER CUP N Type Str Jk, Solder Cup, 50 Ohm, Blkhd |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 11 | 阻抗 | 50 Ohm |
| 额定电压 | 1500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | 阻抗（最大）（Zzt） | 50 Ohm |
| 连接器类型 - 电压输入 | Solder Cup | ||
机械参数
| 深度 | 16.1 mm | 高度 | Not Required mm |
| 包装方式 | Bulk | 本体表面处理 | Nickel |
| 方向 | Straight | 端接方式 | Solder Cup |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Panel Mount | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Panel | 壳体镀层 | Nickel |
| 连接器样式 | N Type | 触头材料 | Brass |
| 总长度 | 40.1 mm | 端接样式 | Solder Cup |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder Cup |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 中心触点镀层工艺 | Gold | 外部壳体颜色 | Silver |
| 中心触点材料 | Phosphor Bronze | 供应商器件封装 | Straight |
产品信息
| 类型 | Type N | 连接器性别 | RCP |
| 极性 | Standard | 连接类型 | Coaxial Cable |
| 射频系列/标准 | N | 输出配置 | Panel Mount, Bulkhead - Rear Side Nut |
环境参数
| 插拔次数 | 500 | 防护等级 | Weatherproof |
| 工作温度 | -65°C ~ 165°C | ||
