172170
| 制造商 | |

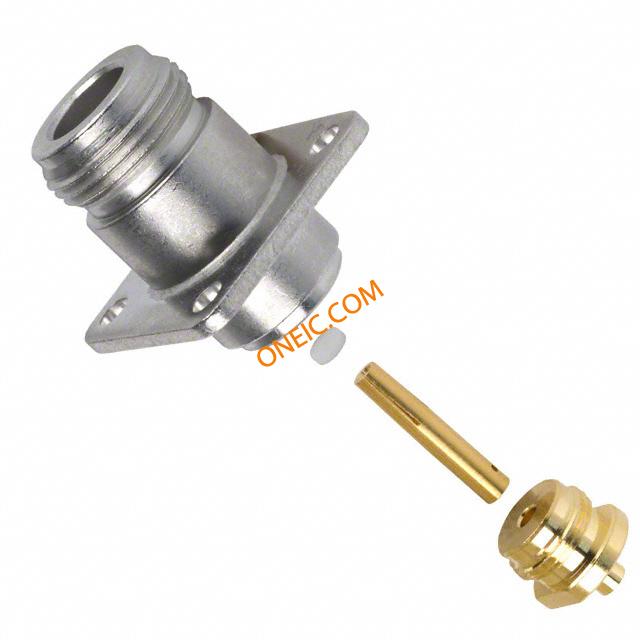

| 描述 | Conn Type N F 0Hz to 11GHz 50Ohm Solder ST Panel Mount Gold CONN N JACK STR 50 OHM CRIMP RF Connectors / Coaxial Connectors N PANEL JACK SOLDER .141 S/R connector, rf coaxial, n str solder paneljack, for 0.141 semi-rigid cable, 50 ohm |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1153 |
| 零件号别名 | 319-0124 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 1500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | 绝缘电阻 | 5000 Megohms (Min.) |
机械参数
| 深度 | 25.4 | 高度 | 25.4 |
| 长度 | 1.052 in. | 重量 | 1.340411 oz |
| 包装方式 | Bulk | 电缆类型 | RG-402/U, 0.141 Semi-Rigid |
| 本体表面处理 | White Bronze | 电缆组 | RG-402 (.141" Semi Rigid) |
| 方向 | Straight | 端接方式 | Solder |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Nexcote |
| 内径（孔径） | 0.143 in. | 外径（标称值） | 0.184 in. |
| 壳体镀层 | Gold/Nickel | 连接器样式 | N Type |
| 连接器用途 | Threaded | 触头材料 | Phosphor Bronze|Beryllium Copper |
| 壳体材料 | Brass | 总长度 | 26.7 |
| 主要材料 | N | 端接样式 | Cable - Solder |
| 屏蔽层端接方式 | Solder | 接触件端接 | Crimp |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
产品信息
| 类型 | Type N | 连接器性别 | F |
| 产品特性 | Captivated Contact | 极性 | Standard |
| 连接类型 | Semi-Rigid Cable | 射频系列/标准 | 172170 |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 温度范围 | -65 to +165 °C |
| 工作温度 | -65°C ~ 165°C | ||
文档与媒体
相关型号
202102-10
amphenol connex
