点击放大查看

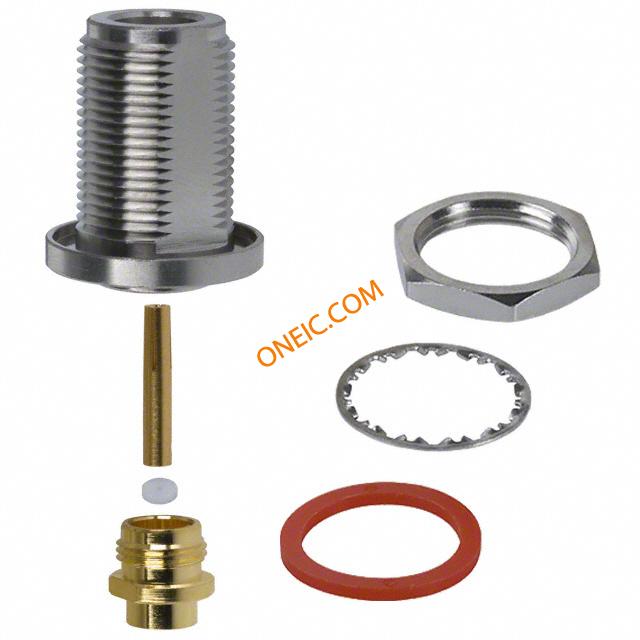

172153
| 制造商 | |
| 描述 | Conn Type N F 0Hz to 11GHz 50Ohm Solder ST Panel Mount Gold CONN N JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors N BLKHD JACK SOLDER .250 SEMI RIGID N TYPE, N BLK. JACK .250 SEMI-RIGID |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1149 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bag |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 1500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | ||
机械参数
| 重量 | 1.259280 oz | 直径 | 22 |
| 包装方式 | Bulk | 电缆类型 | 0.25 Semi-Rigid |
| 本体表面处理 | White Bronze | 电缆组 | RG-401 (.250" Semi Rigid) |
| 方向 | Straight | 端接方式 | Solder |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Panel Mount | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 壳体镀层 | White Bronze | 连接器样式 | N Type |
| 触头材料 | Phosphor Bronze|Beryllium Copper | 总长度 | 26.7 |
| 端接样式 | Cable - Solder | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Beryllium Copper | ||
产品信息
| 类型 | Type N | 连接器性别 | F |
| 极性 | Standard | 连接类型 | Semi-Rigid Cable |
| 射频系列/标准 | 172153 | ||
环境参数
| 插拔次数 | 500 | 防护等级 | Weatherproof |
| 工作温度 | -65°C ~ 165°C | ||
