172149
| 制造商 | |

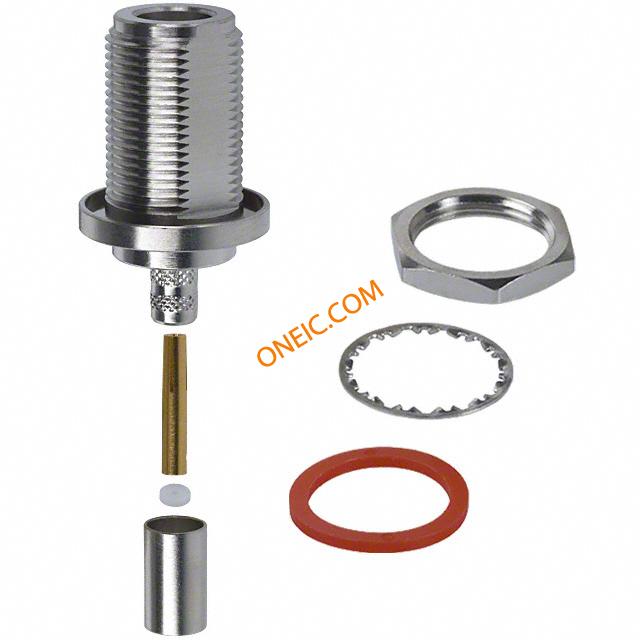

| 描述 | Conn Type N F 0Hz to 11GHz 50Ohm Crimp ST Panel Mount Gold CONN N JACK STR 50 OHM CRIMP connector;rf coaxial;n bulkhead crimp jack;rear mount;for rg8x;LMR240;50 ohm RF Connectors / Coaxial Connectors N ST JACK BULKHEAD CABLE CRIMP connector, rf coaxial, n bulkhead crimp jack, rear mount, for rg8x, LMR240, 50 ohm 172149 Type-N Female Crimp Connector, Bulkhead, Cable Group X, Amphenol |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1146 |
| 零件号别名 | 319-0117 92C6728 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 1500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | 绝缘电阻 | 5000 Megohms (Min.) |
机械参数
| 长度 | 1.418 in. | 重量 | 1.372157 oz |
| 包装方式 | Bulk | 电缆类型 | RG-8X, Belden 7808A, LMR240 |
| 本体表面处理 | White Bronze | 电缆组 | RG-8/X, LMR-240 |
| 方向 | Straight | 端接方式 | Crimp |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Nexcote |
| 内径（孔径） | 0.166 in. | 外径（标称值） | 0.221 in. |
| 壳体镀层 | Nickel | 连接器样式 | N Type |
| 连接器用途 | Threaded | 触头材料 | Phosphor Bronze|Beryllium Copper |
| 壳体材料 | Brass | 总长度 | 36 |
| 主要材料 | N | 端接样式 | Cable - Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | Bulkhead | ||
产品信息
| 类型 | Type N | 连接器性别 | F |
| 产品特性 | Captivated Contact | 极性 | Standard |
| 连接类型 | Flexible Cable | 射频系列/标准 | 172149 |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 温度范围 | -65 to +165 °C |
| 防护等级 | Weatherproof | 工作温度 | -65°C ~ 165°C |
