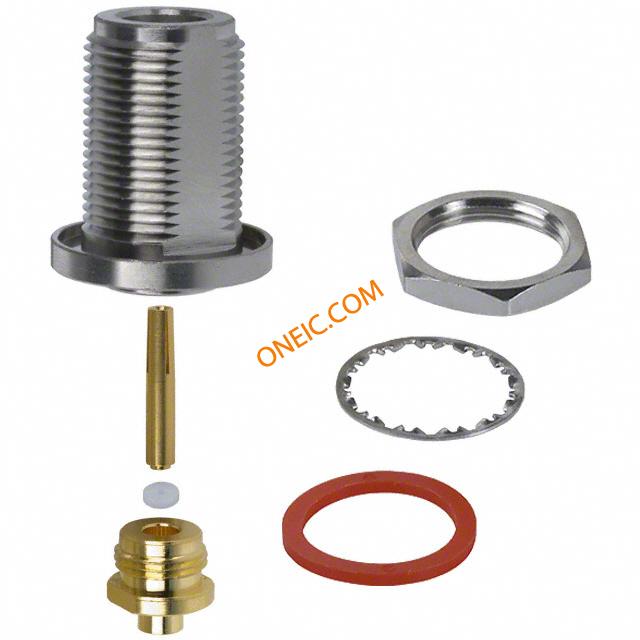

点击放大查看
172137
| 制造商 | |
| 描述 | Conn Type N F 0Hz to 11GHz 50Ohm Solder ST Panel Mount Gold CONN N JACK STR 50 OHM CRIMP connector;rf coaxial;n bulkhead solder jack;rear mount;for 0.141 semi-rigid cabl RF Connectors / Coaxial Connectors N BLKHEAD JK SOLDER .141 SEMI RIGID RF/COAXIAL, N JACK, STR 50 OHM CRIMP/SLDR connector, rf coaxial, n bulkhead solder jack, rear mount, for 0.141 semi-rigid cabl |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1147 |
| 零件号别名 | 319-0118 99H5745 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 1500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | 绝缘电阻 | 5000 Megohms (Min.) |
机械参数
| 长度 | 1.052 in. | 重量 | 1.300198 oz |
| 直径 | 22 | 包装方式 | Bulk |
| 电缆类型 | RG-402/U, 0.141 Semi-Rigid | 本体表面处理 | White Bronze |
| 电缆组 | RG-402 (.141" Semi Rigid) | 方向 | Straight |
| 端接方式 | Solder | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Panel Mount |
| 行程角度 | Straight | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 外壳涂层 | Nexcote | 内径（孔径） | 0.493 in. |
| 外径（标称值） | 0.867 in. | 壳体镀层 | Gold/Nickel |
| 连接器样式 | N Type | 连接器用途 | Threaded |
| 触头材料 | Phosphor Bronze|Beryllium Copper | 壳体材料 | Brass |
| 总长度 | 26.7 | 主要材料 | N |
| 端接样式 | Cable - Solder | 屏蔽层端接方式 | Solder |
| 接触件端接 | Crimp | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | 供应商器件封装 | Bulkhead |
产品信息
| 类型 | Type N | 连接器性别 | F |
| 产品特性 | Captivated Contact | 极性 | Standard |
| 连接类型 | Semi-Rigid Cable | 射频系列/标准 | 172137 |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 温度范围 | -65 to +165 °C |
| 防护等级 | Weatherproof | 工作温度 | -65°C ~ 165°C |
