点击放大查看

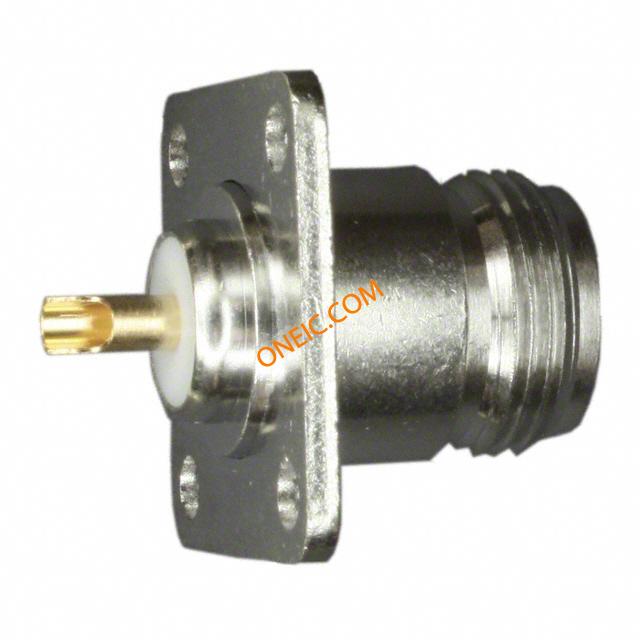

172119
| 制造商 | |
| 描述 | Conn Type N RCP 0Hz to 11GHz 50Ohm Solder Pot ST Panel Mount Gold CONN N JACK STR 50 OHM SOLDER connector;rf coaxial;n panel receptacle jack;solder pot terminal;50 ohm RF Connectors / Coaxial Connectors N PANEL RECPTACLE |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1167 |
| 零件号别名 | 319-0139 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 1500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | ||
机械参数
| 深度 | 25.4 | 高度 | 25.4 |
| 包装方式 | Bulk | 本体表面处理 | White Bronze |
| 方向 | Straight | 端接方式 | Solder Pot |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Panel Mount | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 壳体镀层 | Nickel | 连接器样式 | N Type |
| 触头材料 | Phosphor Bronze|Beryllium Copper | 总长度 | 28.7 |
| 端接样式 | Solder Cup | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder Cup | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | ||
产品信息
| 类型 | Type N | 连接器性别 | RCP |
| 极性 | Standard | 连接类型 | Coaxial Cable |
| 射频系列/标准 | 172119 | ||
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
文档与媒体
相关型号
202102-10
amphenol connex
Connector Accessories N Male Cap Without Chain Brass Nickel Finish RF Connectors UHF TERMINATOR N MALE CAP NO CHAIN CONN N MALE CAP WITHOUT CHAIN RF Connector Accessories UHF TERMINATOR N MALE CAP NO CHAIN RF/COAXIAL, DUST CAP, NO CHAIN, N/UHF Coaxial/RF; Cap-NoChain; N; Protective; Male; Brass; forFemaleConn; Straight; 50Ohms CONN CAP COVER FOR N TYPE JACKS 202102-10 UHF or Type N Cap without Chain
172317
amphenol connex
Conn Type N PL ST Cable Mount Gold CONN CAP N MALE SHORTING RF Connectors / Coaxial Connectors N MALE SHORTING CAP Coaxial/RF; Cap-NoChain; N; Shorting; Male; Brass; forFemaleConnector; Straight CONN CAP CVR SHORTING FOR N JACK
202102
Amphenol Connex
RF Connectors N MALE CAP AND CHAIN CAP & CHAIN Connector Accessories Type N Male Cap And Chain CAP FOR N-TYPE PLUG WITH CHAIN connector accessory;rf coaxial;n male cap and 100mm chain;for jacks and recept RF COAXIAL, DUST CAP W/CHAIN, N MALE Coaxial/RF; Cap-w/Chain; N; Protective; Male; Brass; forFemaleConn; Straight; 50Ohms 202102 UHF or Type N Cap with Chain, Amphenol

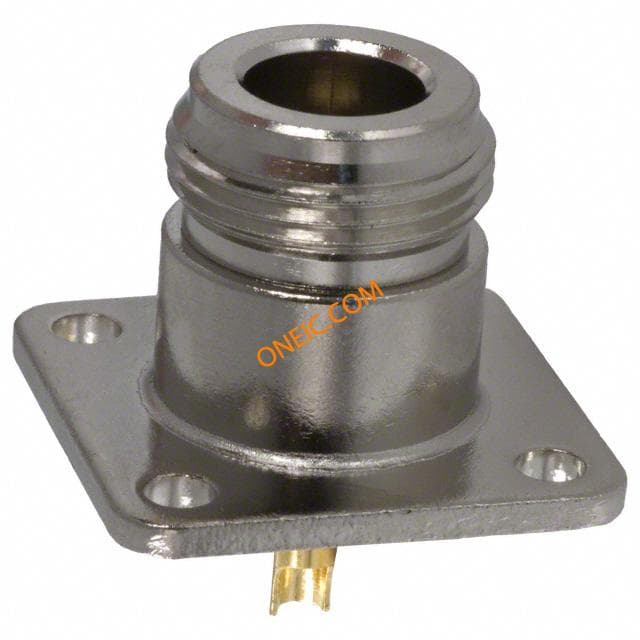

82-97-RFX
