点击放大查看

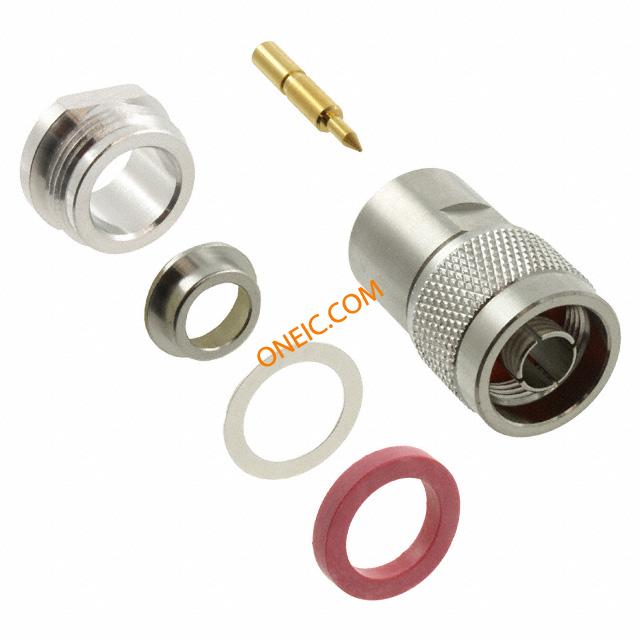

172113
| 制造商 | |
| 描述 | Conn Type N PL 0Hz to 11GHz 50Ohm Solder ST Cable Mount Gold CONN N PLUG STR 50 OHM CRIMP RF Connectors / Coaxial Connectors N STRAIGHT PLUG STANDARD CLAMP RF/COAXIAL, N PLUG, STR, 50 OHM, CLAMP N TYPE, N ST CLAMP PL RG-8/213/214 |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 1500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | ||
机械参数
| 重量 | 1.808143 oz | 包装方式 | Bulk |
| 电缆类型 | RG-8, RG-8A, RG-213, RG-393 | 本体表面处理 | White Bronze |
| 电缆组 | RG-8, 213, 393 | 方向 | Straight |
| 端接方式 | Solder | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Cable Mount |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold |
| 紧固类型 | Threaded | 连接器样式 | N Type |
| 触头材料 | Brass | 端接样式 | Cable - Clamp |
| 屏蔽层端接方式 | Clamp | 接触件端接 | Crimp |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | :Straight Plug |
产品信息
| 类型 | Type N | 连接器性别 | PL |
| 系列 | :- | 极性 | Standard |
| 连接类型 | Flexible Cable | 射频系列/标准 | 172113 |
环境参数
| 插拔次数 | 500 | 防护等级 | Weatherproof |
| 工作温度 | -65°C ~ 165°C | ||
文档与媒体
相关型号
172306
amphenol connex
Connector Accessories N Female Cap With Chain Brass Nickel Finish CONN N FEMALE CAP W/CHAIN connector accessory;rf coaxial;n series female cap and 100mm chain;for plugs RF Connector Accessories N JACK CAP AND CHAIN CHAIN CAP, TNC COAXIAL CONNECTOR Coaxial/RF; Cap-w/Chain; N; Protective; Female; Brass; forMaleConnector; Straight
8213 010500
Belden Wire & Cable
Coaxial Cables 14AWG 1C SHIELD 500ft SPOOL BLACK Cable Coax RG11 PE black 152m COAXIAL CABLE, RG-11/U, 75 OHM IMP., 14AWG SOLID, ANALOG VIDEO CABLE BLACK Coax - 75 Ohm Coax RG-11/U Type Coax Black Belden 152m长 黑色 聚乙烯 PE护套 RG11/U 同轴电缆, 10.287mm外径
8268 010500
Belden Wire & Cable
Coaxial Cables 13AWG STRANDED 500ft SPOOL BLACK COAXIAL CABLE, RG-214/U, 50 OHM IMP., 13AWG (7X21), MIL-C-17G M17/163-00001 BLAC Coax - 50 Ohm Coax M17/164-00001 Coax Black
47-20025
amphenol connex
Crimp Die, Standard Coax Dies Punches & Dies DIE 5 CAVITY MINI/UHF BNC/TNC DIE SET .255/.213/.100/.068/.052 DIE 5 CAVITY MINI/UHF BNC/TNC
47-10180
amphenol connex
Crimp Tool With Die Crimpers CRIMP TOOL W/DIE .255/.213/.100/.068 Hand Tools CRIMP TOOL W/DIE .255/.213/.100/.068 TOOL CRIMP .255/.213/.100/.068 tool;ratcheted hand crimp tool w/die set;cavities:.255;.213;.100;.068;.052(see) tool, ratcheted hand crimp tool w/die set, cavities:.255, .213, .100, .068, .052(see)

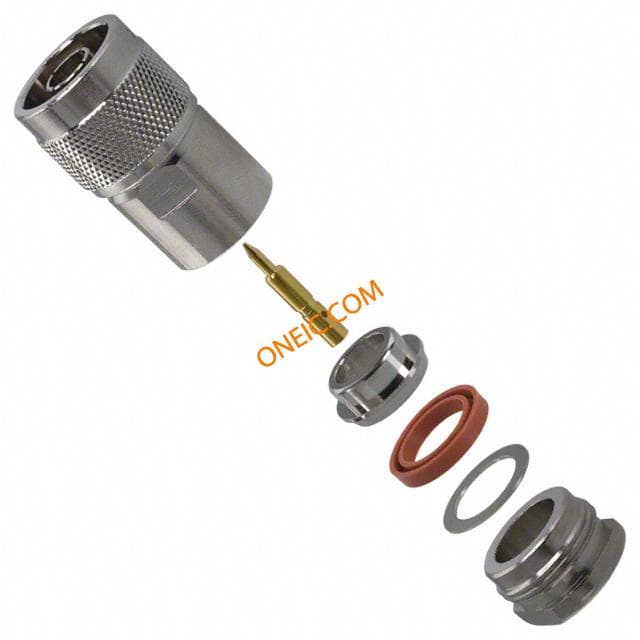

82-202-RFX
