172102
| 制造商 | |
| 描述 | Conn Type N PL 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold CONN N PLUG STR 50 OHM CRIMP connector;rf coaxial;n str crimp plug;captive cont;for rg8;213;393;50 ohm RF Connectors / Coaxial Connectors N STRAIGHT CRIMP PLUG RG8 RF/COAXIAL, N PLUG, STR, 50 OHM, CRIMP connector, rf coaxial, n str crimp plug, captive cont, for rg8, 213, 393, 50 ohm 172102 Type-N Male Crimp Connector, Cable Group E, Amphenol |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1125 |
| 零件号别名 | 319-0098 97H5808 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 1500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | 绝缘电阻 | 5000 Megohms (Min.) |
机械参数
| 长度 | 1.174 in. | 重量 | 1.188733 oz |
| 直径 | 21 | 包装方式 | Bulk |
| 电缆类型 | RG-8, RG-8A, RG-213, RG-393 | 本体表面处理 | White Bronze |
| 电缆组 | RG-8, 213, 393 | 方向 | Straight |
| 端接方式 | Crimp | 重量（g） | 62.00000 |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Nexcote |
| 内径（孔径） | 0.291 in. | 外径（标称值） | 0.366 in. |
| 壳体镀层 | Nickel | 连接器样式 | N Type |
| 连接器用途 | Threaded | 触头材料 | Brass |
| 壳体材料 | Brass | 总长度 | 29.8 |
| 主要材料 | N | 端接样式 | Cable - Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | Type N | 连接器性别 | PL |
| 产品特性 | Captivated Contact | 极性 | Standard |
| 连接类型 | Flexible Cable | 射频系列/标准 | 172102 |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 温度范围 | -65 to +165 °C |
| 防护等级 | Weatherproof | 工作温度 | -65°C ~ 165°C |
文档与媒体
相关型号
172306
amphenol connex
Connector Accessories N Female Cap With Chain Brass Nickel Finish CONN N FEMALE CAP W/CHAIN connector accessory;rf coaxial;n series female cap and 100mm chain;for plugs RF Connector Accessories N JACK CAP AND CHAIN CHAIN CAP, TNC COAXIAL CONNECTOR Coaxial/RF; Cap-w/Chain; N; Protective; Female; Brass; forMaleConnector; Straight
47-20029
amphenol connex
Crimp Die, Standard Coax Dies Punches & Dies CRIMP DIE SET 8/58 N SERIES TOOL DIE SET .429/.213/.100 CRIMP DIE SET 8/58 N SERIES
47-10230
amphenol connex
Crimp Tool With Die Punches & Dies CRIMP TOOL RG58/8 N SERIES TOOL CRIMP W/DIES .429/.213/.100 CRIMP TOOL RG58/8 N SERIES

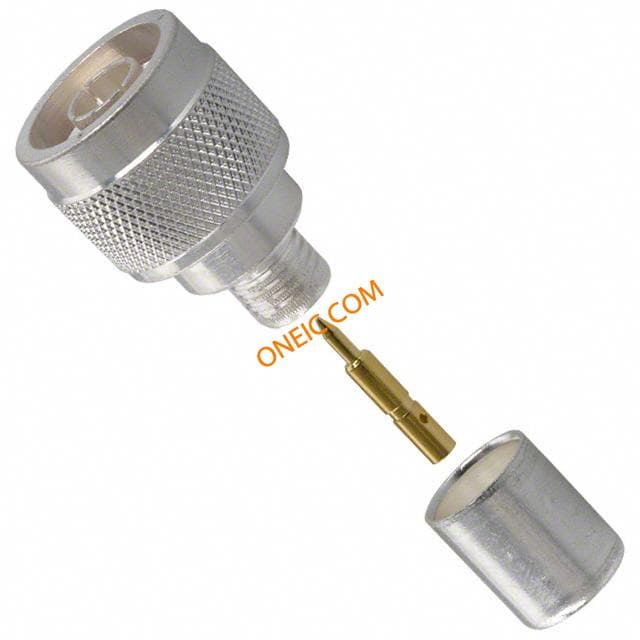

82-340
