172100
| 制造商 | |

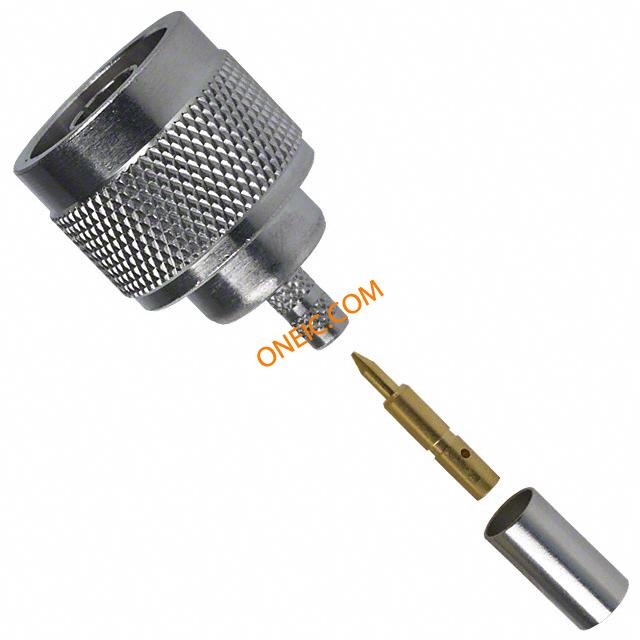

| 描述 | RF コネクタ N STRAIGHT CRIMP PLUG RG58 Conn Type N PL 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold CONN N PLUG STR 50 OHM CRIMP connector;rf coaxial;n str crimp plug;captive cont;for rg58;141;LMR195;50 ohm RF Connectors / Coaxial Connectors N STRAIGHT CRIMP PLUG RG58 PLUG, N TYPE, STR, 50OHM, CRIMP connector, rf coaxial, n str crimp plug, captive cont, for rg58, 141, LMR195, 50 ohm 172100 Type-N Male Crimp Connector, Cable Group C, Amphenol |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1118 |
| 零件号别名 | 319-0093 92C6716 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 抗辐射加固 | No |
电气参数
| 频率 | 0 to 11 | 阻抗 | 50 Ohm |
| 额定电压 | 1500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | 绝缘电阻 | 5000 Megohms (Min.) |
机械参数
| 深度 | Not Required mm | 高度 | Not Required mm |
| 长度 | 1.174 in. | 重量 | 0.032 |
| 直径 | 21 mm | 包装方式 | Bulk |
| 电缆类型 | RG-58, RG-58A, RG-58C, RG-141, RG-303, LMR195, Belden 7806A | 本体表面处理 | White Bronze |
| 电缆组 | RG-58, LMR-195 | 方向 | Straight |
| 端接方式 | Crimp | 重量（g） | 32.56000 |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Nexcote |
| 内径（孔径） | 0.126 in. | 安装样式 | Cable |
| 外径（标称值） | 0.181 in. | 壳体镀层 | Nickel |
| 连接器样式 | N Type | 连接器用途 | Threaded |
| 触头材料 | Brass | 壳体材料 | Brass |
| 总长度 | 34.6 mm | 主要材料 | N |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | Straight |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | Type N | 连接器性别 | PL |
| 系列 | :- | 产品特性 | Captivated Contact |
| 极性 | Standard | 连接类型 | Coaxial Cable |
| 射频系列/标准 | N | 应用细节 | Commercial |
| 适用产品/相关产品 | RG-58/141/LMR195 | ||
环境参数
| 插拔次数 | 500 | 温度范围 | -65 to +165 °C |
| 工作温度 | -65°C ~ 165°C | ||
文档与媒体
相关型号
172306
amphenol connex

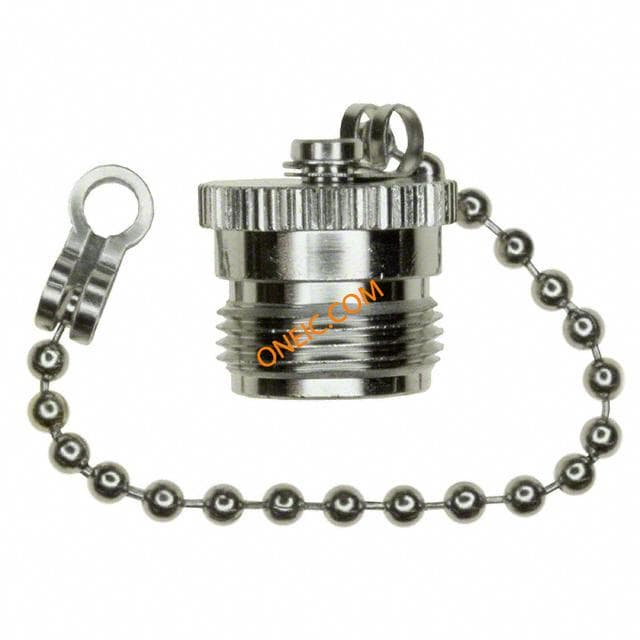

Connector Accessories N Female Cap With Chain Brass Nickel Finish CONN N FEMALE CAP W/CHAIN connector accessory;rf coaxial;n series female cap and 100mm chain;for plugs RF Connector Accessories N JACK CAP AND CHAIN CHAIN CAP, TNC COAXIAL CONNECTOR Coaxial/RF; Cap-w/Chain; N; Protective; Female; Brass; forMaleConnector; Straight
