点击放大查看

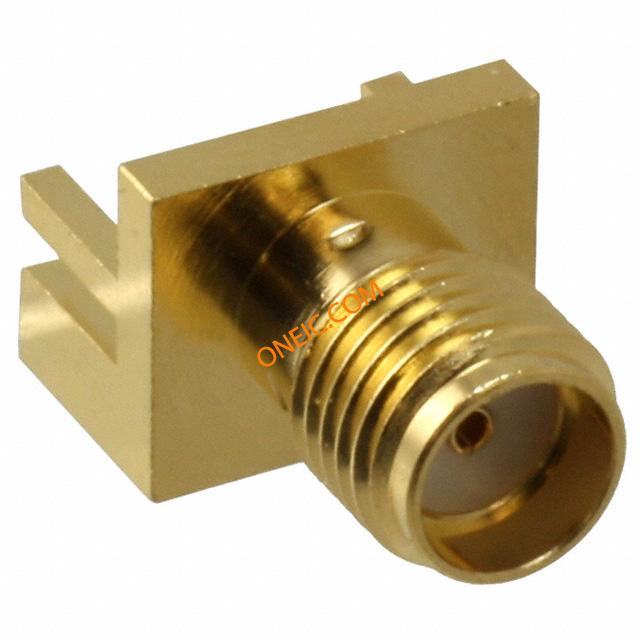

132414
| 制造商 | |
| 描述 | CONN SMA JACK SMT END LAUNCH CONN SMA JACK 50 OHM EDGE MNT RF Connectors / Coaxial Connectors ENDLAUNCH RCPT TAB.042PCB |
| 分类 |
商业参数
| 产品 | PCB Connectors | 其他名称 | ACX1917 |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 阻抗 | 50 Ohm | 耦合系数 | Threaded |
| 最大频率 | 18GHz | ||
机械参数
| 包装方式 | Bulk | 本体表面处理 | Gold |
| 方向 | Straight | 基体材料 | Brass |
| 外壳颜色 | Gold | 安装类型 | Board Edge, End Launch |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Threaded | 连接器样式 | SMA |
| 触头材料 | Beryllium Copper | 端接样式 | PCB - End Launch |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Beryllium Copper | ||
产品信息
| 连接器性别 | Jack | 极性 | Standard |
| 射频系列/标准 | SMA | ||
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
