点击放大查看

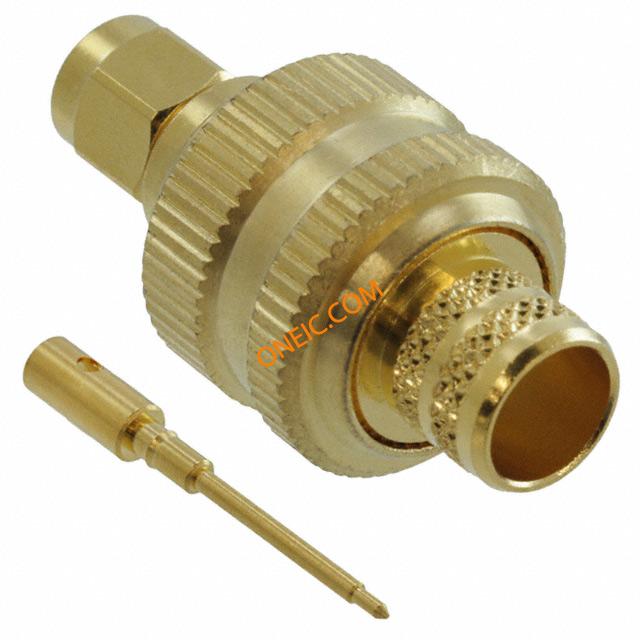

132368
| 制造商 | |
| 描述 | SMA PLUG 8,213,393U CONN SMA PLUG STR 50 OHM SOLDER RF Connectors / Coaxial Connectors SMA STRAIGHT CRIMP PLUG RG 8/213/393 connector, rf coaxial, sma straight crimpplug, for rg8, 213 cables |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX2017 |
| 零件号别名 | 319-0329 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | ||
电气参数
| 阻抗 | 50 Ohm | 耦合系数 | Threaded |
| 最大频率 | 12.4GHz | ||
机械参数
| 重量 | 1.089965 oz | 包装方式 | Bulk |
| 电缆类型 | RG-8/U, RG-213/U | 本体表面处理 | Gold |
| 电缆组 | RG-8, 213, 393 | 方向 | Straight |
| 基体材料 | Brass | 外壳颜色 | Gold |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 连接器样式 | SMA | 触头材料 | Brass |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Straight | ||
产品信息
| 连接器性别 | Plug | 极性 | Standard |
| 射频系列/标准 | SMA | ||
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
