点击放大查看

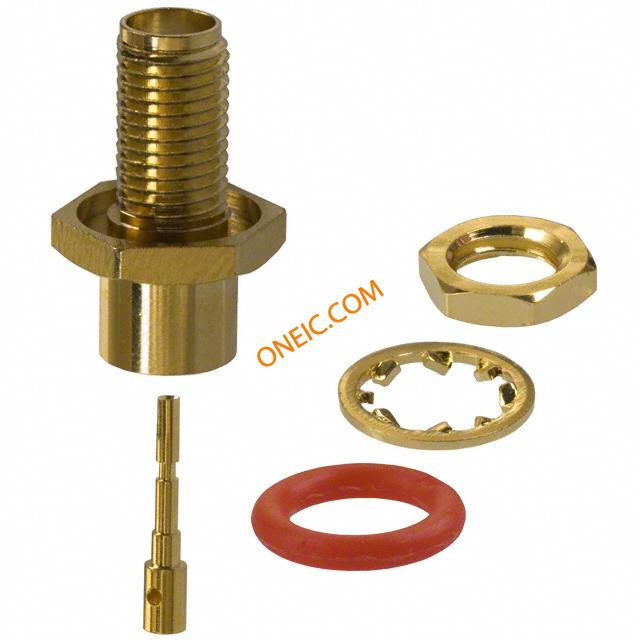

132346
| 制造商 | |
| 描述 | Conn SMA RCP Solder ST Panel Mount Gold CONN SMA JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors SMA BULKHEAD JACK SOL .250 SEMI RIGID SMA, SMA BULKHEAD JK .250 S/R |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1184 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bag |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 阻抗 | 50 Ohm | 耦合系数 | Threaded |
| 最大频率 | 18GHz | ||
机械参数
| 包装方式 | Bulk | 本体表面处理 | Gold |
| 电缆组 | RG-401 (.250" Semi Rigid) | 方向 | Straight |
| 端接方式 | Solder | 基体材料 | Brass |
| 外壳颜色 | Gold | 安装类型 | Panel Mount |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Threaded | 连接器样式 | SMA |
| 触头材料 | Brass | 端接样式 | Cable - Solder |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Beryllium Copper | 供应商器件封装 | Bulkhead |
产品信息
| 类型 | SMA | 连接器性别 | RCP |
| 极性 | Standard | 连接类型 | Semi-Rigid Cable |
| 射频系列/标准 | SMA | ||
环境参数
| 插拔次数 | 500 | 防护等级 | Weatherproof |
| 工作温度 | -65°C ~ 165°C | ||
