点击放大查看

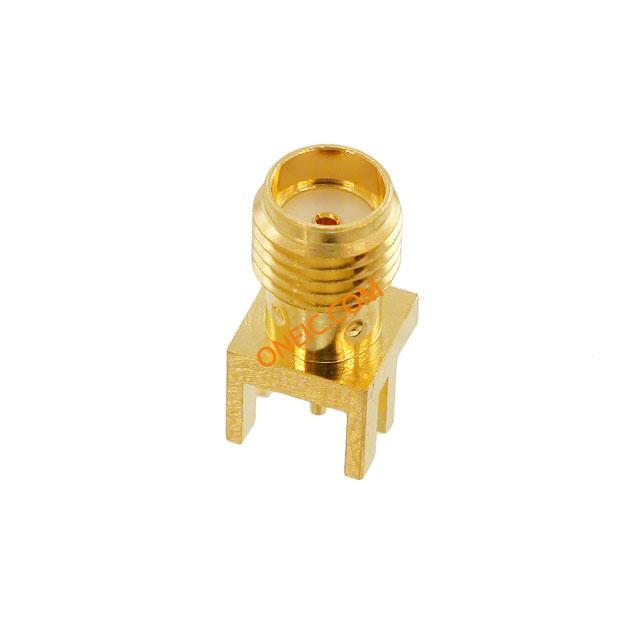

132323
| 制造商 | |
| 描述 | SMA END LAUNCH RCP.042 PCB CONN SMA JACK 50 OHM EDGE MNT |
| 分类 |
商业参数
| 其他名称 | ACX1925 | 标准包装数量 | 1 |
电气参数
| 阻抗 | 50 Ohm | 最大频率 | 18GHz |
机械参数
| 包装方式 | Bulk | 本体表面处理 | Gold |
| 基体材料 | Brass | 外壳颜色 | Gold |
| 安装类型 | Board Edge, End Launch | 连接器类型 | Jack, Female Socket |
| 紧固类型 | Threaded | 连接器样式 | SMA |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Beryllium Copper | ||
环境参数
| 工作温度 | -65°C ~ 165°C | ||
