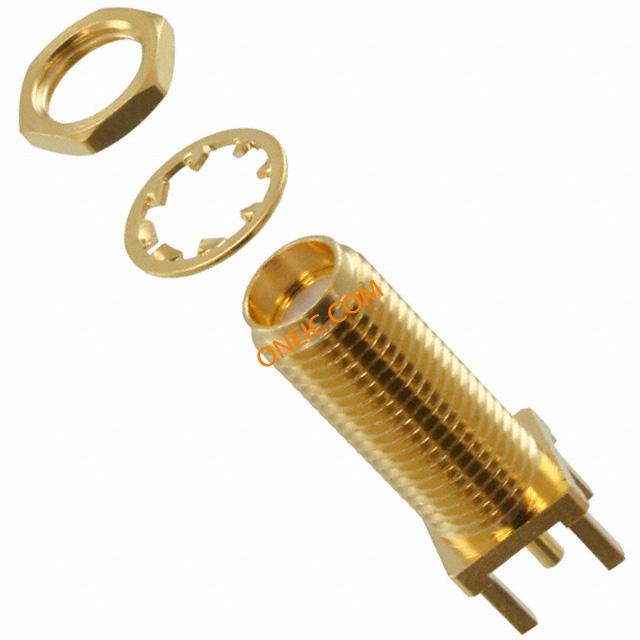

点击放大查看
132291
| 制造商 | |
| 描述 | RF Connectors SMA STRAIGHT JACK PCB MOUNT BULKHEAD Conn SMA F 0Hz to 18GHz 50Ohm Solder ST Thru-Hole Gold CONN SMA JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors SMA STRAIGHT JACK PCB MOUNT BULKHEAD SMA, SMA STRT JCK/P.C.B. BLKH MOUNT |
| 分类 |
商业参数
| 产品 | PCB Connectors | 其他名称 | ACX1976 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 0 to 18G | 阻抗 | 50 Ohm |
| 耦合系数 | Threaded | 最大频率 | 18GHz |
机械参数
| 重量 | 0.110055 oz | 直径 | 10.2 |
| 包装方式 | Bulk | 本体表面处理 | Gold |
| 方向 | Straight | 端接方式 | Solder |
| 基体材料 | Brass | 外壳颜色 | Gold |
| 安装类型 | Through Hole | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 壳体镀层 | Gold | 连接器样式 | SMA |
| 触头材料 | Beryllium Copper | 端接样式 | PCB - Through Hole |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Beryllium Copper |
| 供应商器件封装 | Bulkhead | ||
产品信息
| 类型 | SMA | 连接器性别 | F |
| 极性 | Standard | 连接类型 | PCB |
| 射频系列/标准 | SMA | ||
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
文档与媒体
