132286
| 制造商 | |

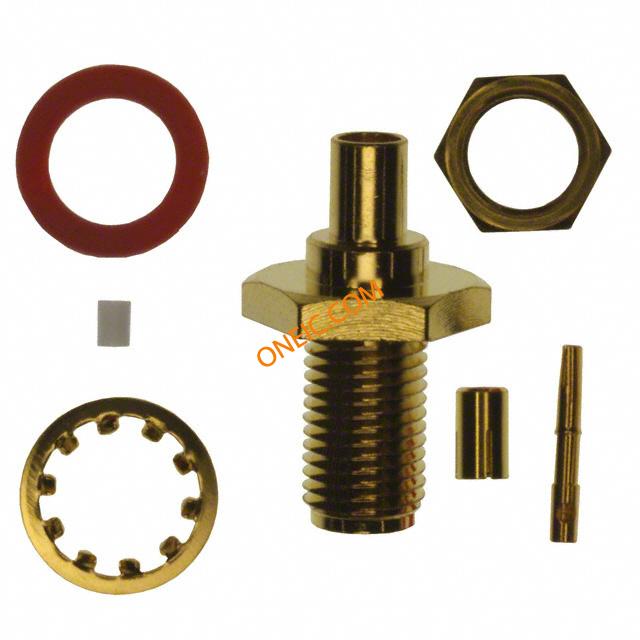

| 描述 | RF Connectors SMA BULKHEAD JACK 196/U O RING SEAL Conn SMA RCP 0Hz to 12.4GHz 50Ohm Crimp ST Panel Mount Gold CONN SMA JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors SMA BULKHEAD JACK 196/U O RING SEAL RF COAXIAL, SMA, BLKHD JACK, 50 OHM, CRIMP SMA, SMA BLK JK 196U O RING SEAL |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1422 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 抗辐射加固 | No |
电气参数
| 频率 | 0 to 12.4 Hz | 阻抗 | 50 Ohm |
| 耦合系数 | Threaded | 最大频率 | 12.4GHz |
机械参数
| 深度 | 11 mm | 重量 | 0.138979 oz |
| 直径 | Not Required mm | 包装方式 | Bulk |
| 电缆类型 | RG-178, RG-196 | 本体表面处理 | Gold |
| 电缆组 | RG-178, 196 | 方向 | Straight |
| 端接方式 | Crimp | 基体材料 | Brass |
| 外壳颜色 | Gold | 安装类型 | Panel Mount |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 壳体镀层 | Gold | 连接器样式 | SMA |
| 触头材料 | Beryllium Copper | 总长度 | 17.7 mm |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Beryllium Copper | 供应商器件封装 | Straight |
产品信息
| 类型 | SMA | 连接器性别 | RCP |
| 系列 | :- | 极性 | Standard |
| 连接类型 | Flexible Cable | 射频系列/标准 | SMA |
环境参数
| 插拔次数 | 500 | 防护等级 | Weatherproof |
| 工作温度 | -65°C ~ 165°C | ||
