132284
| 制造商 | |

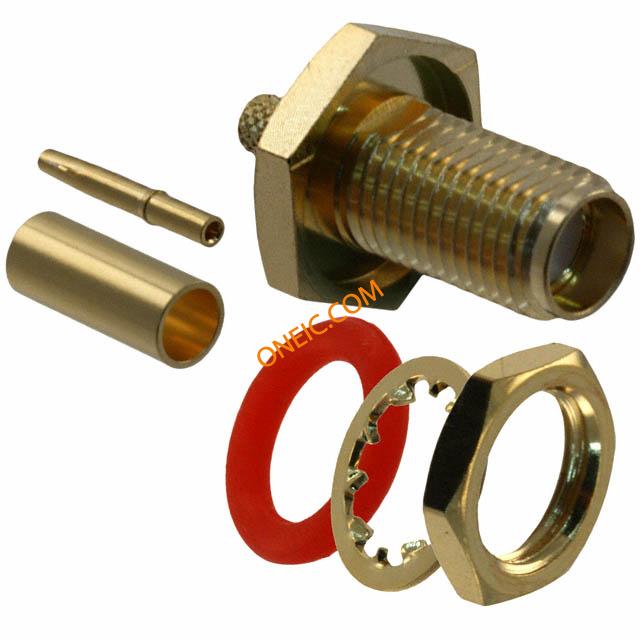

| 描述 | Conn SMA RCP 0Hz to 12.4GHz 50Ohm Crimp ST Panel Mount Gold CONN SMA JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors SMA BULKHEAD JACK 316/U O RING SEAL RF COAXIAL, SMA, BLKHD JACK, 50OHM, CRIMP JACK, SMA, STR, 50OHM, CRIMP SMA, SMA BLK JK 316U O RING SEAL |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1421 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bag |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 频率 | 0 to 12.4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 375V | 耦合系数 | Threaded |
| 最大频率 | 12.4GHz | ||
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 电缆类型 | RG-174, RG-188A, RG-316, Belden 7805A | 本体表面处理 | Gold |
| 电缆组 | RG-174, 316, LMR-100 | 方向 | Straight |
| 端接方式 | Crimp | 基体材料 | Brass |
| 外壳颜色 | Gold | 安装类型 | Panel Mount |
| 行程角度 | Straight | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 外壳涂层 | Gold | 连接器样式 | SMA |
| 连接器用途 | Threaded | 触头材料 | Beryllium Copper |
| 壳体材料 | Brass | 主要材料 | SMA |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Beryllium Copper |
| 供应商器件封装 | :Straight Bulkhead Jack | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | SMA | 连接器性别 | RCP |
| 系列 | :- | 极性 | Standard |
| 连接类型 | Flexible Cable | 射频系列/标准 | SMA |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 防护等级 | Weatherproof |
| 工作温度 | -65°C ~ 165°C | ||
文档与媒体
相关型号
47-10150
Amphenol Connex
Crimpers CRIMP TOOL W/DIE .178/.128/.068 TOOL CRIMP W/DIES .178/.128/.068 tool;ratcheted hand crimp tool w/die set;cavities: .178;.128;.068 (see notes) Crimp Tool With Die CRIMP TOOL W/DIE SET, RATCHET,COAXIAL CABLE tool, ratcheted hand crimp tool w/die set, cavities: .178, .128, .068 (see notes)
202112-10
amphenol connex
Connector Accessories SMA Male Cap Brass Gold Finish CONN SMA PLUG CAP W/CHAIN connector accessory;rf coaxial;sma plug cap with chain;for jacks and receptacles RF/COAXIAL CONNECTOR CAP, SMA, JACK, WITH CHAIN 202112-10 SMA Male Cap with Chain,Chain Length: 100mm, Amphenol
132364
amphenol connex
SMA PL CAP-EXT BODY FOR RP JK SMA CAP FOR FEMALE CONNECTOR RF Connector Accessories SMA MALE CAP FOR REV POLARITY JACK RF/COAXIAL CONNECTOR Coaxial/RF; Cap-NoChain; SMA; Protective; Male; Brass; forFemaleConn; Straight
202112
amphenol connex
Connector Accessories SMA Male Cap Brass Gold Finish CONN SMA PLUG CAP W/O CHAIN connector accessory;sma dust cap(plug);for unused/open jacks and receptacles RF Connector Accessories SMA MALE CAP CAP, SMA, JACK RF/COAXIAL CONNECTOR Coaxial/RF; Cap-NoChain; SMA; Protective; Male; Brass; forJacksandRecep; Straight CONN CAP (COVER) FOR SMA JACKS
47-20004
amphenol connex
Crimp Die Set Punches & Dies CRIMP DIE .178/ .128/.068 TOOL DIE SET .178/.128/.068 DIE FOR RG174, MINI 59 BNC/TNC
132331
amphenol connex
Connector Accessories SMA Male Shorting Cap Brass Gold Finish CONN PLUG SMA SHORTING CAP connector accessory;rf coaxial;sma male shorting cap for jacks and receptacles RF Connectors / Coaxial Connectors SMA MALE SHORTING CAP RF/COAXIAL CONNECTOR Coaxial/RF; Cap-NoChain; SMA; Terminator; Male; Brass; forJacksandRecep; Straight

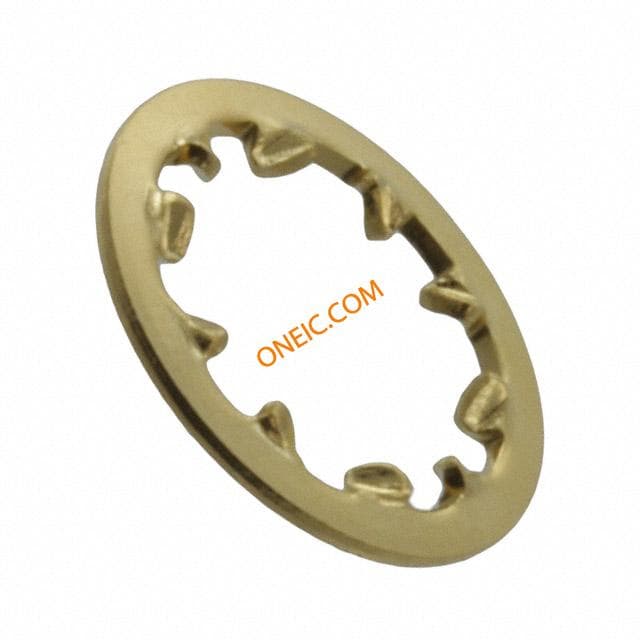

132-WASH-GLD
