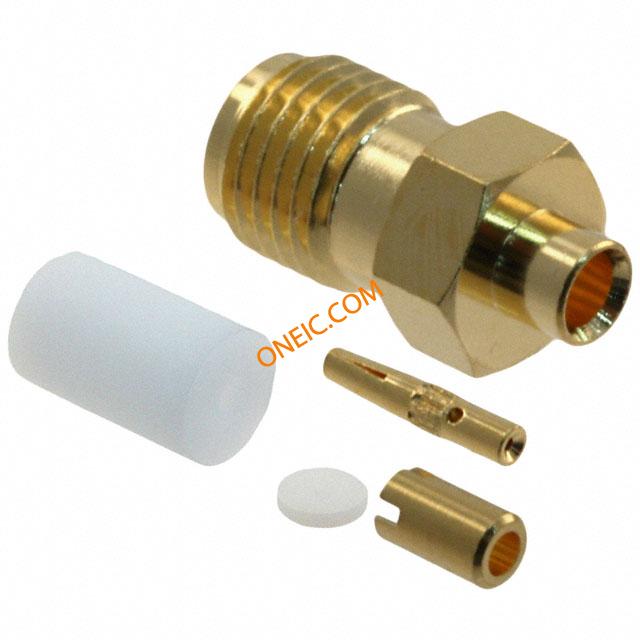

点击放大查看
132257
| 制造商 | |
| 描述 | Conn SMA RCP 0Hz to 18GHz 50Ohm Solder ST Cable Mount Gold CONN SMA JACK STR 50 OHM SOLDER connector;rf coaxial;sma straight jack;direct solder;for 0.047 semi-rigid cable RF Connectors / Coaxial Connectors SMA STRAIGHT CABLE JACK 0.047 connector, rf coaxial, sma straight jack, direct solder, for 0.047 semi-rigid cable |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1845 |
| 零件号别名 | 16R1532 319-0328 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
| 耦合系数 | Threaded | 最大频率 | 18GHz |
机械参数
| 深度 | 6.35 | 重量 | 0.059966 oz |
| 包装方式 | Bulk | 电缆类型 | 0.047 Semi-Rigid |
| 本体表面处理 | Gold | 电缆组 | .047" Semi Rigid |
| 方向 | Straight | 端接方式 | Solder |
| 基体材料 | Brass | 外壳颜色 | Gold |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Gold |
| 壳体镀层 | Gold | 连接器样式 | SMA |
| 连接器用途 | Threaded | 触头材料 | Beryllium Copper |
| 壳体材料 | Brass | 总长度 | 12.7 |
| 主要材料 | SMA | 端接样式 | Cable - Solder |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Beryllium Copper |
产品信息
| 类型 | SMA | 连接器性别 | RCP |
| 极性 | Standard | 连接类型 | Semi-Rigid Cable |
| 射频系列/标准 | SMA | 应用细节 | Commercial |
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
