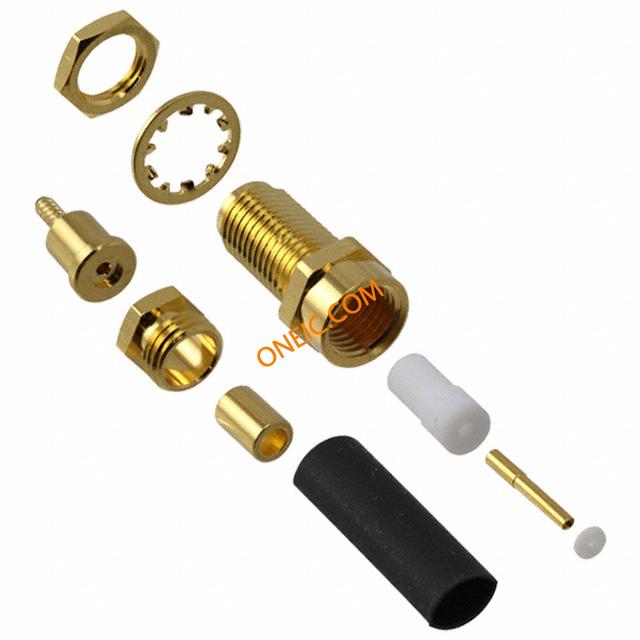

132220
| 制造商 | |
| 描述 | Conn SMA RCP 0Hz to 12.4GHz 50Ohm Crimp ST Panel Mount Gold CONN SMA JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors SMA BULKHEAD CRIMP JACK RG-178, 196 connector, rf coaxial, sma bulkhead crimpjack, for rg/u 178, 196 cable, 50 ohm |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 319-0503 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bag |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 0 to 12.4 GHz | 阻抗 | 50 Ohm |
| 耦合系数 | Threaded | 最大频率 | 12.4GHz |
机械参数
| 深度 | 8 | 重量 | 0.158733 oz |
| 包装方式 | Bulk | 电缆类型 | RG-178, RG-196 |
| 本体表面处理 | Gold | 电缆组 | RG-178, 196 |
| 方向 | Straight | 端接方式 | Crimp |
| 基体材料 | Brass | 外壳颜色 | Gold |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Gold |
| 壳体镀层 | Gold | 连接器样式 | SMA |
| 触头材料 | Beryllium Copper | 总长度 | 16.3 |
| 主要材料 | SMA | 端接样式 | Cable - Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | SMA | 连接器性别 | RCP |
| 产品特性 | Heat Shrink Tubing | 极性 | Standard |
| 连接类型 | Flexible Cable | 射频系列/标准 | SMA |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 防护等级 | Weatherproof |
| 工作温度 | -65°C ~ 165°C | ||
