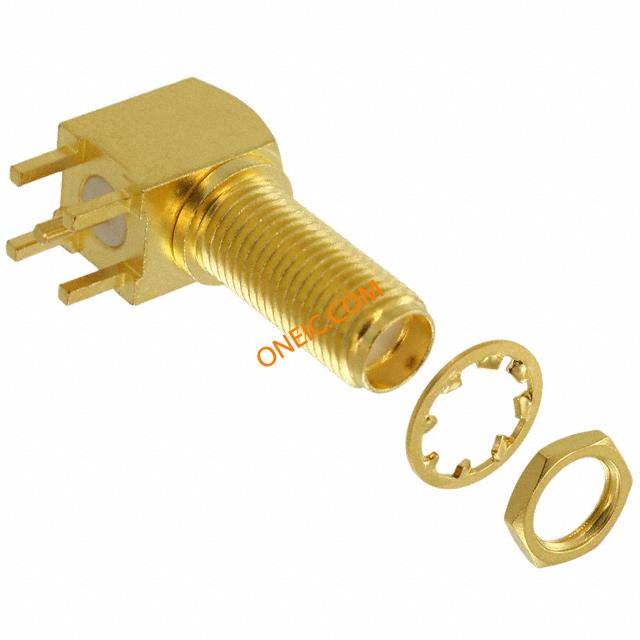

132203-12
| 制造商 | |
| 描述 | CONN JACK SMA R/A 50 OHM PCB CONN SMA JACK R/A 50 OHM PCB RF Connectors / Coaxial Connectors R/A PCB Jk Thru-Hole Conn SMA RCP Solder RA Thru-Hole Gold SMA R/A PCB Jk, Thru-Hole, 50 Ohm, Blkhd SMAR/APCBJk,Thru-Hole,50Ohm,Blkhd |
| 分类 |
商业参数
| 产品 | PCB Connectors | 零件号别名 | 132203-12 |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
电气参数
| 阻抗 | 50 Ohm | 耦合系数 | Threaded |
| 最大频率 | 12.4GHz | ||
机械参数
| 直径 | 10.2 mm | 包装方式 | Bulk |
| 本体表面处理 | Gold | 方向 | Right Angle |
| 端接方式 | Solder | 基体材料 | Brass |
| 外壳颜色 | Gold | 安装类型 | Panel Mount, Bulkhead; Through Hole, Right Angle |
| 行程角度 | Right Angle | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 外壳涂层 | Gold | 安装样式 | Through Hole |
| 壳体镀层 | Nickel | 连接器样式 | SMA |
| 触头材料 | Beryllium Copper | 壳体材料 | Brass |
| 总长度 | 23.5 mm | 主要材料 | SMA |
| 端接样式 | PCB - Through Hole | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Beryllium Copper |
| 供应商器件封装 | Right Angle | ||
产品信息
| 类型 | SMA | 连接器性别 | Jack |
| 已删除 | Compliant | 极性 | Standard |
| 连接类型 | Coaxial Cable | 射频系列/标准 | SMA |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
