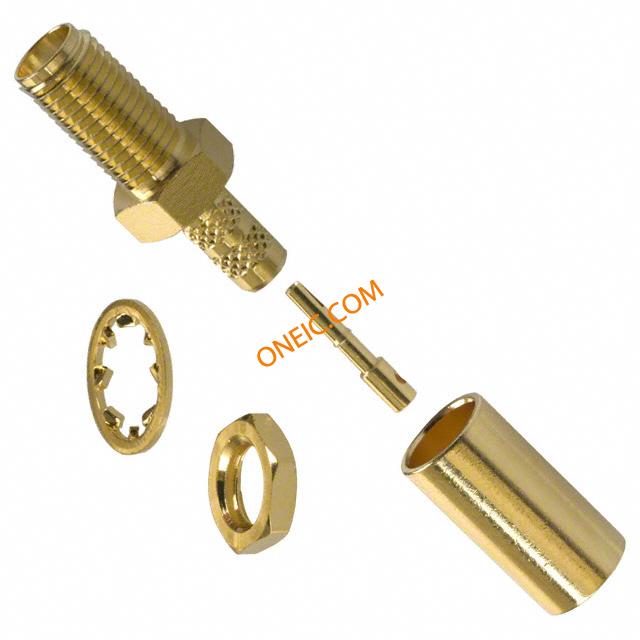

| 描述 | Conn SMA RCP 0Hz to 12.4GHz 50Ohm Crimp ST Panel Mount Gold CONN SMA JACK STR 50 OHM SOLDER connector;rf coaxial;sma bulkhead crimp jack;for rg142;223;400 cable;50 ohm RF Connectors / Coaxial Connectors SMA BLKHD CRIMP JACK RG-223/142 RF/COAXIAL, SMA BHD JACK STR 50 OHM CRIMP connector, rf coaxial, sma bulkhead crimpjack, for rg142, 223, 400 cable, 50 ohm 132191 SMA Female Crimp Connector, Bulkhead, Cable Group C1, Amphenol |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1220 |
| 零件号别名 | 319-0170 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 频率 | 0 to 12.4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500 V | 耦合系数 | Threaded |
| 最大频率 | 12.4GHz | ||
机械参数
| 长度 | 0.894 in. | 重量 | 0.144623 oz |
| 包装方式 | Bulk | 电缆类型 | RG-55, RG-142, RG-223, RG-400 |
| 本体表面处理 | Gold | 电缆组 | RG-55, 142, 223 |
| 方向 | Straight | 端接方式 | Crimp |
| 重量（g） | 6.00000 | 基体材料 | Brass |
| 外壳颜色 | Gold | 安装类型 | Panel Mount |
| 行程角度 | Straight | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 外壳涂层 | Gold | 连接器样式 | SMA |
| 连接器用途 | Threaded | 触头材料 | Beryllium Copper |
| 壳体材料 | Brass | 主要材料 | SMA |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Beryllium Copper |
| 供应商器件封装 | Bulkhead | ||
产品信息
| 类型 | SMA | 连接器性别 | RCP |
| 极性 | Standard | 连接类型 | Flexible Cable |
| 射频系列/标准 | SMA | 应用细节 | Commercial |
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
