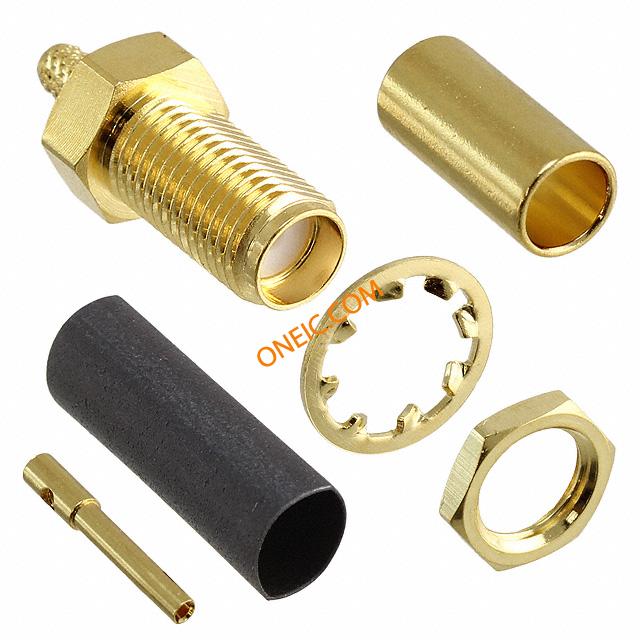

132176
| 制造商 | |
| 描述 | Conn SMA F 0Hz to 18GHz 50Ohm Crimp ST Panel Mount Gold CONN SMA JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors SMA ST BLKHD CRIMP JACK 316 DBL BRAID SMA, SMA BKHD CRMP JCK-316/DB |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1952 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bag |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 375V | 耦合系数 | Threaded |
| 最大频率 | 12.4GHz | ||
机械参数
| 重量 | 0.137568 oz | 包装方式 | Bulk |
| 电缆类型 | RG-316/U Double Braid | 本体表面处理 | Gold |
| 电缆组 | RG-316 Double Braid | 方向 | Straight |
| 端接方式 | Crimp | 基体材料 | Brass |
| 外壳颜色 | Gold | 安装类型 | Panel Mount |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Threaded | 连接器样式 | SMA |
| 触头材料 | Beryllium Copper | 端接样式 | Cable - Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Beryllium Copper | ||
产品信息
| 类型 | SMA | 连接器性别 | F |
| 产品特性 | Heat Shrink Tubing | 极性 | Standard |
| 连接类型 | Coaxial Cable | 射频系列/标准 | SMA |
环境参数
| 插拔次数 | 500 | 防护等级 | Weatherproof |
| 工作温度 | -65°C ~ 165°C | ||
