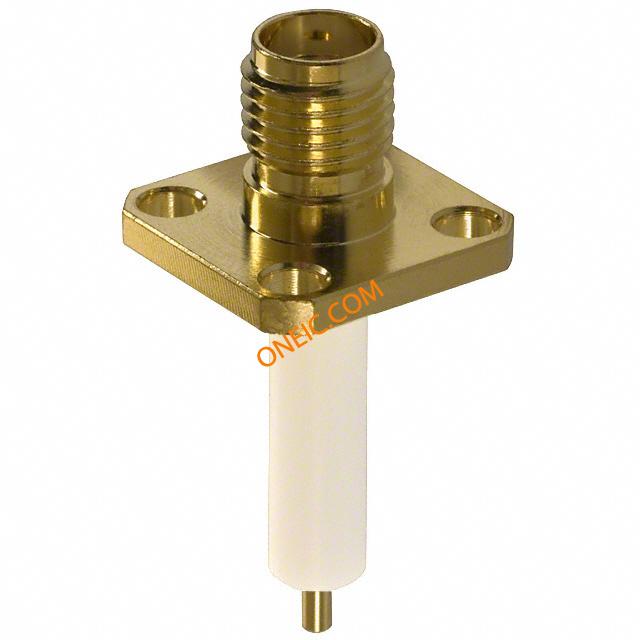

132146
| 制造商 | |
| 描述 | Conn SMA RCP 0Hz to 18GHz 50Ohm Solder Pot ST Panel Mount Gold CONN SMA JACK STR 50 OHM SOLDER connector;rf coaxial;sma panel jack recept;4-hole flange;exposed tfe(.59);50 ohm RF/COAXIAL, SMA JACK, STR, 50 OHM, SOLDER connector, rf coaxial, sma panel jack recept, 4-hole flange, exposed tfe(.59), 50 ohm |
| 分类 |
商业参数
| 其他名称 | ACX1238 | 标准包装数量 | Bag |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
机械参数
| 深度 | 12.7 | 高度 | 12.7 |
| 长度 | 1.079 in. | 重量 | 0.005 |
| 包装方式 | Bulk | 电缆类型 | :- |
| 本体表面处理 | Gold | 端接方式 | Solder Pot |
| 基体材料 | Brass | 外壳颜色 | Gold |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Gold |
| 壳体镀层 | Gold | 连接器样式 | SMA |
| 连接器用途 | Threaded | 触头材料 | Beryllium Copper |
| 壳体材料 | Brass | 总长度 | 27.4 |
| 主要材料 | SMA | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Beryllium Copper | 供应商器件封装 | :Straight Jack |
产品信息
| 类型 | SMA | 连接器性别 | RCP |
| 系列 | :- | 产品特性 | Extended Insulation |
| 连接类型 | Coaxial Cable | 应用细节 | Commercial |
环境参数
| 工作温度 | -65°C ~ 165°C | ||
