点击放大查看

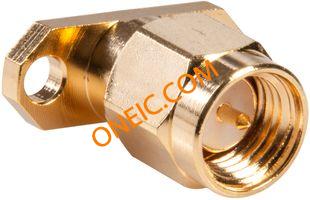

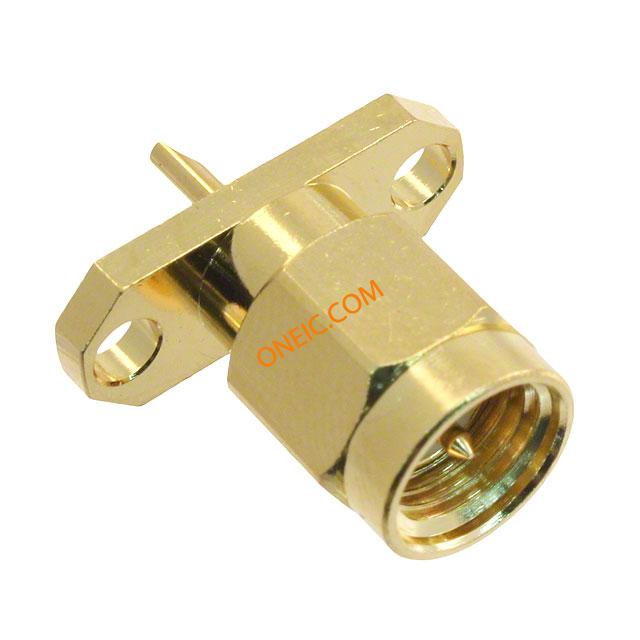

132141
| 制造商 | |
| 描述 | Conn SMA PL 0Hz to 18GHz 50Ohm Solder Pot ST Panel Mount Gold CONN SMA JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors SMA PANEL MOUNT PLUG 2 HOLE RF/COAXIAL, SMA PLUG, STR, 50 OHM, SOLDER SMA, SMA PNL MNT PLG-2 HOLE |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1824 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bag |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
| 耦合系数 | Threaded | 最大频率 | 12.4GHz |
机械参数
| 重量 | 0.123459 oz | 包装方式 | Bulk |
| 电缆类型 | :- | 本体表面处理 | Gold |
| 方向 | Straight | 端接方式 | Solder Pot |
| 基体材料 | Brass | 外壳颜色 | Gold |
| 安装类型 | Panel Mount | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 壳体镀层 | Gold | 连接器样式 | SMA |
| 触头材料 | Brass | 总长度 | 18 |
| 端接样式 | Solder Cup | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder Cup | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Beryllium Copper | 供应商器件封装 | :Straight Plug |
产品信息
| 类型 | SMA | 连接器性别 | PL |
| 系列 | :- | 极性 | Standard |
| 连接类型 | Coaxial Cable | 射频系列/标准 | SMA |
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
