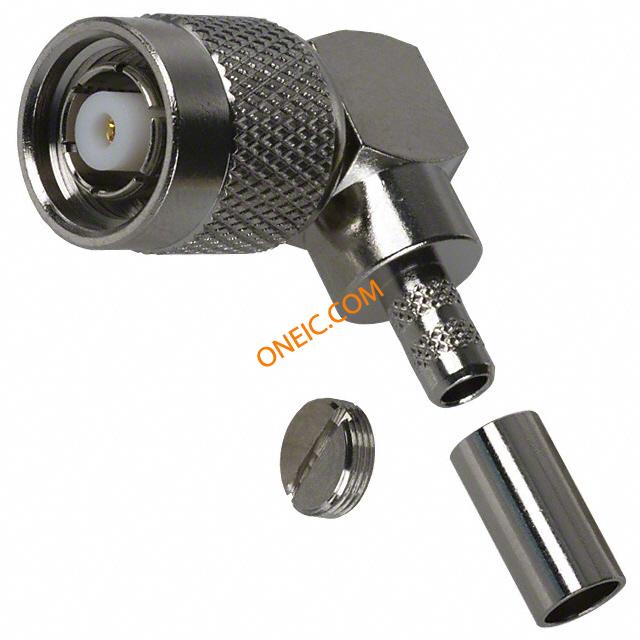

122430
| 制造商 | |
| 描述 | Conn TNC PL 0Hz to 11GHz 50Ohm Crimp RA Cable Mount Gold CONN TNC PLUG R/A 50 OHM SOLDER connector;rf coaxial;tnc rt angle crimp/solder plug;for rg142;223;400;50 ohm RF Connectors / Coaxial Connectors TNC R/A PLUG RG55 223 142 400 RF/COAXIAL, TNC PLUG, R/A, 50 OHM, CRIMP connector, rf coaxial, tnc rt angle crimp/solder plug, for rg142, 223, 400, 50 ohm 122430 TNC Male Crimp Connector, Right Angle, Cable Group C1, Amphenol |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Connectors | 其他名称 | ACX1092 |
| 零件号别名 | 319-0078 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | ||
机械参数
| 重量 | 0.697013 oz | 包装方式 | Bulk |
| 电缆类型 | RG-55, RG-142, RG-223, RG-400 | 本体表面处理 | Nickel |
| 电缆组 | RG-55, 142, 223 | 方向 | Right Angle |
| 端接方式 | Crimp | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Cable Mount |
| 行程角度 | Right Angle | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 外壳涂层 | Nickel | 连接器样式 | TNC |
| 连接器用途 | Threaded | 触头材料 | Brass |
| 壳体材料 | Brass | 主要材料 | TNC |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | :Right Angle Plug | ||
产品信息
| 类型 | TNC | 连接器性别 | PL |
| 系列 | :- | 产品特性 | Captivated Contact |
| 极性 | Standard | 制造商全称 | TNC Series |
| 连接类型 | Standard Cable | 射频系列/标准 | TNC |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 65 C to + 165 C |
