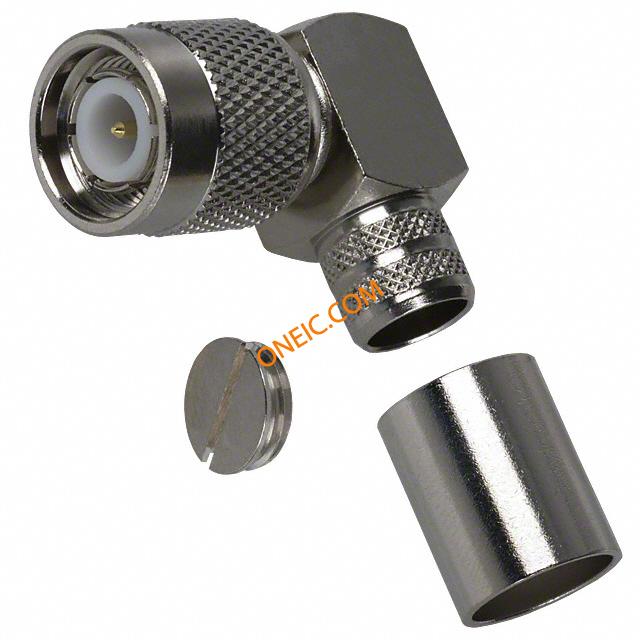

| 描述 | Conn TNC PL 0Hz to 11GHz 50Ohm Crimp RA Cable Mount Gold RF Connectors TNC RA PLG LMR400 B9913/7808A/8214 NIC CONN TNC PLUG STR 50 OHM SOLDER connector;rf coaxial;tnc rt angle crimp/solder plug;for b9913;LMR400;50 ohm RF Connectors / Coaxial Connectors TNC RA PLG LMR400 B9913/7808A/8214 NIC RF/COAXIAL, PLUG, R/A 50 OHM CRIMP/SOLDER connector, rf coaxial, tnc rt angle crimp/solder plug, for b9913, LMR400, 50 ohm 122416 TNC Male Crimp Connector, Right Angle, Cable Group I, Amphenol |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1094 |
| 零件号别名 | 319-0080 | 产品类别 | RF Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 85366910 |
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | ||
机械参数
| 重量 | 0.857157 oz | 包装方式 | Bulk |
| 电缆类型 | Belden 9913, Belden 9914 | 本体表面处理 | Nickel |
| 电缆组 | LMR-400 | 方向 | Right Angle |
| 端接方式 | Crimp | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Cable Mount |
| 外壳镀层 | Nickel | 行程角度 | Right Angle |
| 连接器类型 | Plug RF Connector | 接触镀层 | Gold |
| 紧固类型 | Threaded | 连接器样式 | TNC |
| 连接器用途 | Threaded | 触头材料 | Brass |
| 壳体材料 | Brass | 主要材料 | TNC |
| 端接样式 | Solder | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Right Angle | ||
产品信息
| 类型 | TNC | 连接器性别 | PL |
| 系列 | :- | 产品特性 | Captivated Contact |
| 极性 | Normal | 制造商全称 | TNC Series |
| 连接类型 | Standard Cable | 射频系列/标准 | TNC |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 防护等级 | Weatherproof |
| 工作温度 | - 65 C to + 165 C | ||
