122409
| 制造商 | |

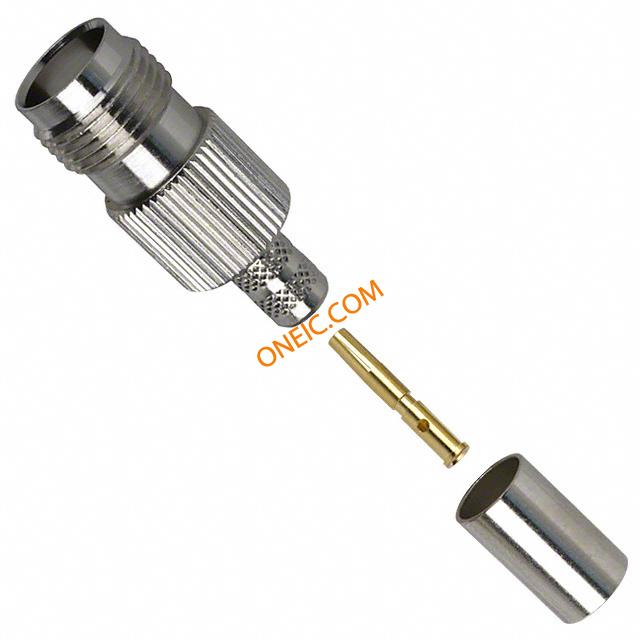

| 描述 | Conn TNC RCP 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold CONN TNC JACK STR 50 OHM CRIMP connector;rf coaxial;tnc straight crimp jack;for rg-8x;LMR240 cable;50 ohm RF Connectors / Coaxial Connectors TNC STRAIGHT JACK RG8X/LMR240 RF/COAXIAL, TNC JACK, STR, 50 OHM, CRIMP connector, rf coaxial, tnc straight crimpjack, for rg-8x, LMR240 cable, 50 ohm 122409 TNC Female Crimp Connector, Cable Group X, Amphenol |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1107 |
| 零件号别名 | 319-0463 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | ||
机械参数
| 重量 | 0.388014 oz | 包装方式 | Bulk |
| 电缆类型 | RG-8X, Belden 7808A, LMR240 | 本体表面处理 | Nickel |
| 电缆组 | RG-8/X, LMR-240 | 方向 | Straight |
| 端接方式 | Crimp | 重量（g） | 12.36000 |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Nickel |
| 连接器样式 | TNC | 连接器用途 | Threaded |
| 触头材料 | Phosphor Bronze | 壳体材料 | Brass |
| 主要材料 | TNC | 端接样式 | Cable - Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polyoxymethylene (POM) Acetal | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | 供应商器件封装 | Straight |
产品信息
| 类型 | TNC | 连接器性别 | RCP |
| 产品特性 | Captivated Contact | 极性 | Standard |
| 制造商全称 | TNC Series | 连接类型 | Standard Cable |
| 射频系列/标准 | 122409 | 应用细节 | Commercial |
