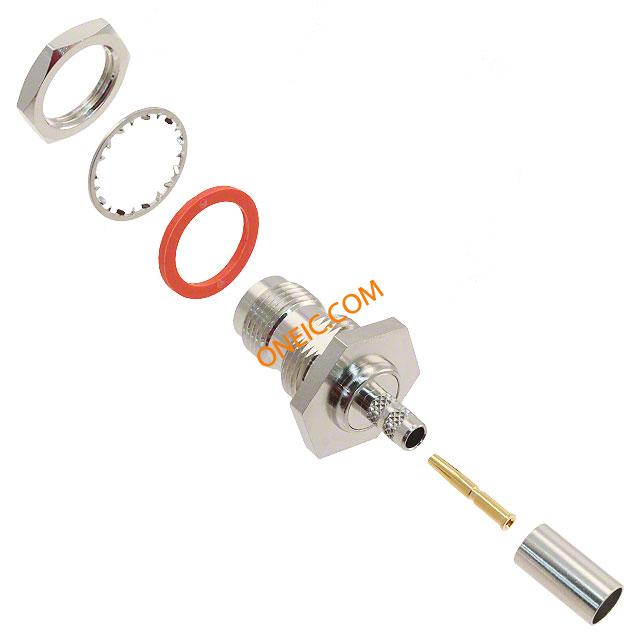

点击放大查看
122363
| 制造商 | |
| 描述 | Conn TNC RCP 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold CONN TNC JACK STR 50 OHM CRIMP Connector;RF Coaxial;TNC Bulkhead Crimp Jack;for rg-55;142;223;400 Cable;50 Ohm RF Connectors / Coaxial Connectors TNC BULKHEAD JACK RG223 142-50 OHM RF/COAXIAL, TNC BHD JACK STR 50 OHM CRIMP Connector, RF Coaxial, TNC Bulkhead CrimpJack, for rg-55, 142, 223, 400 Cable, 50 Ohm |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1414 |
| 零件号别名 | 319-0295 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | ||
机械参数
| 深度 | 17.5 | 重量 | 0.596130 oz |
| 包装方式 | Bulk | 电缆类型 | RG-55, RG-142, RG-223, RG-400 |
| 本体表面处理 | Nickel | 电缆组 | RG-55, 142, 223 |
| 方向 | Straight | 端接方式 | Crimp |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Nickel |
| 壳体镀层 | Nickel | 连接器样式 | TNC |
| 连接器用途 | Threaded | 触头材料 | Phosphor Bronze |
| 壳体材料 | Brass | 总长度 | 30.3 |
| 主要材料 | TNC | 端接样式 | Cable - Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polyoxymethylene (POM) Acetal | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | TNC | 连接器性别 | RCP |
| 系列 | :- | 产品特性 | Captivated Contact |
| 极性 | Standard | 制造商全称 | TNC Series |
| 连接类型 | Standard Cable | 射频系列/标准 | 122363 |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 防护等级 | Weatherproof |
| 工作温度 | - 40 C to + 155 C | ||
