点击放大查看

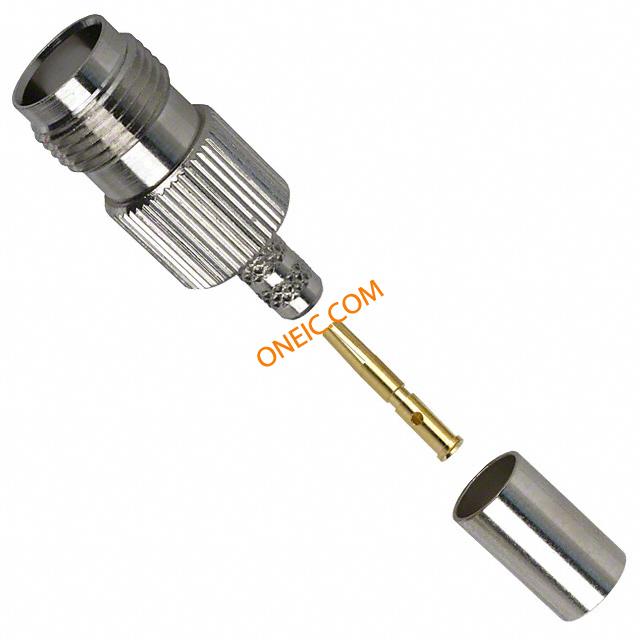

122122
| 制造商 | |
| 描述 | RF Connectors TNC ST JK 58/141 NIC LMR 195 BELDEN7806A Conn TNC RCP 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold CONN TNC JACK STR 50 OHM CRIMP RF Connectors / Coaxial Connectors TNC ST JK 58/141 NIC LMR 195 BELDEN7806A RF/COAXIAL, TNC JACK, STR, 50 OHM, CRIMP connector, rf coaxial, tnc straight crimpjack, for rg 58, 141, lmr195, 50 ohm 122122 TNC Female Crimp Connector, Cable Group C, Amphenol |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1104 |
| 零件号别名 | 319-0460 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 抗辐射加固 | No |
电气参数
| 频率 | 0 to 11 | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | ||
机械参数
| 深度 | Not Required mm | 高度 | Not Required mm |
| 重量 | 0.384486 oz | 直径 | 11.5 mm |
| 包装方式 | Bulk | 电缆类型 | RG-58, RG-58A, RG-58C, RG-141, RG-303, LMR195, Belden 7806A |
| 本体表面处理 | Nickel | 电缆组 | RG-58, LMR-195 |
| 方向 | Straight | 端接方式 | Crimp |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Nickel |
| 安装样式 | Cable | 壳体镀层 | Nickel |
| 连接器样式 | TNC | 连接器用途 | Threaded |
| 触头材料 | Phosphor Bronze | 壳体材料 | Brass |
| 总长度 | 28.8 mm | 主要材料 | TNC |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | 供应商器件封装 | Straight |
产品信息
| 类型 | TNC | 连接器性别 | RCP |
| 系列 | :- | 产品特性 | Captivated Contact |
| 极性 | Standard | 制造商全称 | TNC Series |
| 连接类型 | Standard Cable | 射频系列/标准 | TNC |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 65 C to + 165 C |
