122116
| 制造商 | |

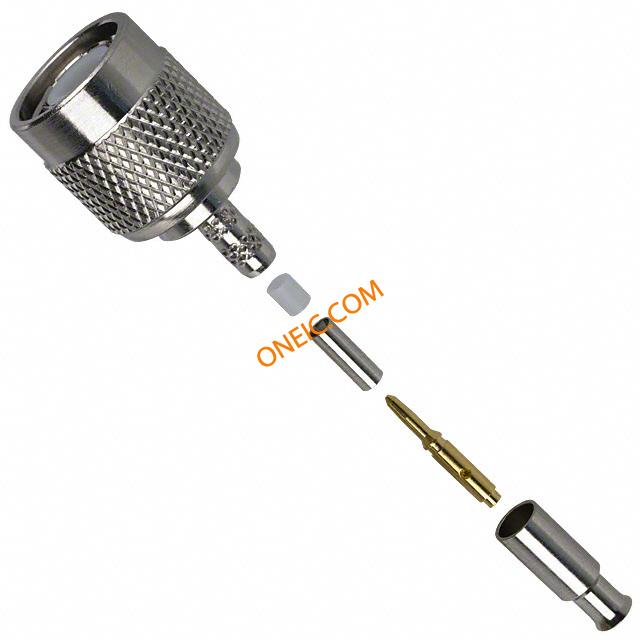

| 描述 | Conn TNC PL 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold CONN TNC PLUG STR 50 OHM CRIMP connector;rf coaxial;tnc straight crimp plug;for rg174;316;LMR100 cable;50 ohm RF Connectors / Coaxial Connectors TNC ST PLUG 174/ 316 NICKEL RF/COAXIAL, TNC PLUG, STR, 50OHM, CRIMP PLUG, TNC, STR, 50OHM, CRIMP connector, rf coaxial, tnc straight crimpplug, for rg174, 316, LMR100 cable, 50 ohm 122116 TNC Male Crimp Connector, Cable Group B, Amphenol |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1083 |
| 零件号别名 | 319-0073 99H4716 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 抗辐射加固 | No |
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | ||
机械参数
| 重量 | 0.431753 oz | 直径 | 14.5 mm |
| 包装方式 | Bulk | 电缆类型 | RG-174, RG-188A, RG-316, Belden 7805A |
| 本体表面处理 | Nickel | 电缆组 | RG-174, 316, LMR-100 |
| 方向 | Straight | 端接方式 | Crimp |
| 重量（g） | 14.00000 | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 外壳涂层 | Nickel | 安装样式 | Cable |
| 壳体镀层 | Nickel | 连接器样式 | TNC |
| 连接器用途 | Threaded | 触头材料 | Brass |
| 壳体材料 | Brass | 总长度 | 25 mm |
| 主要材料 | TNC | 端接样式 | Cable - Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polyoxymethylene (POM) Acetal | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Straight | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | TNC | 连接器性别 | PL |
| 系列 | :- | 产品特性 | Captivated Contact |
| 极性 | Standard | 制造商全称 | TNC Series |
| 连接类型 | Semi-Rigid Cable | 射频系列/标准 | TNC |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 40 C to + 155 C |
文档与媒体
相关型号
31-2315-RFX
amphenol
Conn TNC PL 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold connector;rf coaxial;tnc commercial str plug;crimp-crimp;rg174;188;316;50 ohm RF Connectors / Coaxial Connectors CRIMP PLUG RG174/188
47-10150
Amphenol Connex
Crimpers CRIMP TOOL W/DIE .178/.128/.068 TOOL CRIMP W/DIES .178/.128/.068 tool;ratcheted hand crimp tool w/die set;cavities: .178;.128;.068 (see notes) Crimp Tool With Die CRIMP TOOL W/DIE SET, RATCHET,COAXIAL CABLE tool, ratcheted hand crimp tool w/die set, cavities: .178, .128, .068 (see notes)
122486
amphenol connex
TNC JACK CAP AND CHAIN CONN CAP TNC FEMALE W/CHAIN connector accessory;rf coaxial;tnc female cap and 100 mm chain RF Connector Accessories TNC JACK CAP & CHAIN Coaxial/RF; Cap-w/Chain; TNC; Protective; Female; Brass; forMaleConnector; Straight
47-20004
amphenol connex
Crimp Die Set Punches & Dies CRIMP DIE .178/ .128/.068 TOOL DIE SET .178/.128/.068 DIE FOR RG174, MINI 59 BNC/TNC
31-2315
Amphenol RF
RF Connectors TNC PLUG RG174/188 connector;rf coaxial;tnc straight plug;crimp-crimp;for rg174;188 cable;50 ohm RF Connectors / Coaxial Connectors TNC PLUG RG174/188 RF/COAXIAL, TNC PLUG, STR, 50 OHM, CRIMP 31-2315 TNC Male Crimp Connector, Cable Group B, Amphenol
