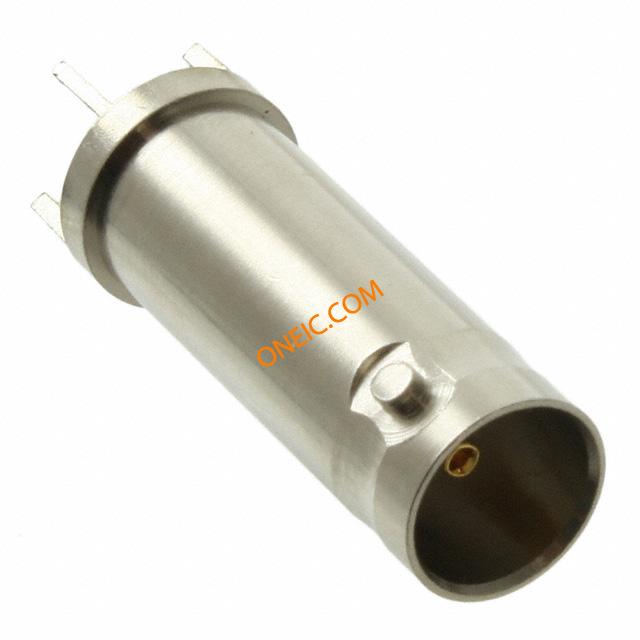

112554
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC F 0Hz to 1GHz 75Ohm Solder ST Thru-Hole Gold CONN BNC JACK STR 75 OHM PCB RF Connectors / Coaxial Connectors BNC PCB JACK-50 OHM 4 POST EX-LONG BNC, BNC PCB JK-75~4 POST EX-LONG |
| 分类 |
商业参数
| 产品 | PCB Connectors | 其他名称 | ACX1965 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bag |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 0 to 1 GHz | 阻抗 | 75 Ohm |
| 额定电压 | 500V | 耦合系数 | Bayonet |
| 最大频率 | 4GHz | ||
机械参数
| 高度 | 27.94 | 重量 | 0.338630 oz |
| 直径 | 11 | 包装方式 | Bulk |
| 本体表面处理 | Nickel | 方向 | Straight |
| 端接方式 | Solder | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Through Hole |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 壳体镀层 | Nickel |
| 连接器样式 | BNC | 触头材料 | Phosphor Bronze |
| 端接样式 | PCB - Through Hole | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | ||
产品信息
| 类型 | BNC | 连接器性别 | F |
| 极性 | Standard | 连接类型 | PCB |
| 射频系列/标准 | 112554 | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 65 C to + 165 C |
