112404
| 制造商 | Amphenol Corporation |

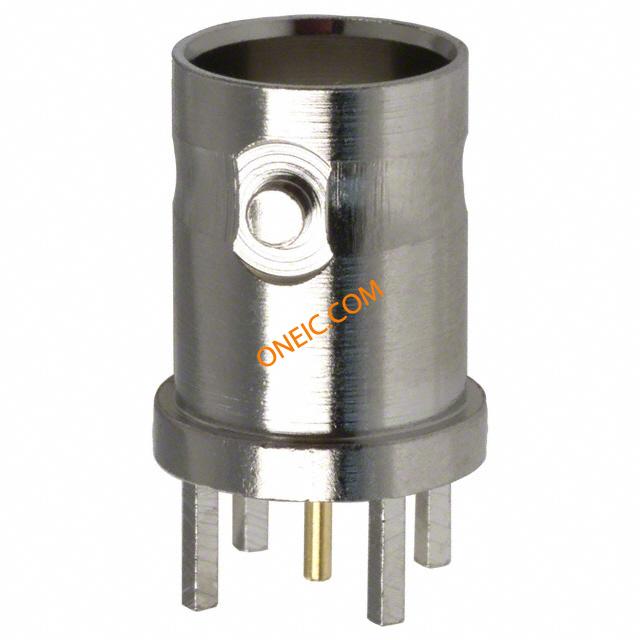

| 描述 | Conn BNC F 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold CONN BNC JACK STR 50 OHM PCB RF Connectors / Coaxial Connectors BNC ST PCB JACK 50 OHM TF-4 POST RF/COAXIAL, BNC JACK, STR, 50 OHM, SOLDER BNC Straight PCB Jack, Thru-Hole, 50 Ohm |
| 分类 |
商业参数
| 产品 | PCB Connectors | 其他名称 | ACX1051 |
| 零件号别名 | 319-0045 99H4363 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Bayonet |
| 最大频率 | 4GHz | ||
机械参数
| 深度 | Not Required mm | 高度 | 16.2 mm |
| 重量 | 0.141978 oz | 直径 | 11 mm |
| 包装方式 | Bulk | 电缆类型 | :- |
| 本体表面处理 | Nickel | 方向 | Straight |
| 端接方式 | Solder | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Through Hole |
| 行程角度 | Straight | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 安装样式 | Through Hole |
| 壳体镀层 | Nickel | 连接器样式 | BNC |
| 连接器用途 | Bayonet | 触头材料 | Phosphor Bronze |
| 壳体材料 | Brass | 总长度 | Not Required mm |
| 主要材料 | BNC | 端接样式 | PCB - Through Hole |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Teflon |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | BNC | 连接器性别 | F |
| 系列 | :- | 极性 | Standard |
| 连接类型 | PCB | 射频系列/标准 | 112404 |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 65 C to + 165 C |
文档与媒体
相关型号
202100-10
amphenol connex

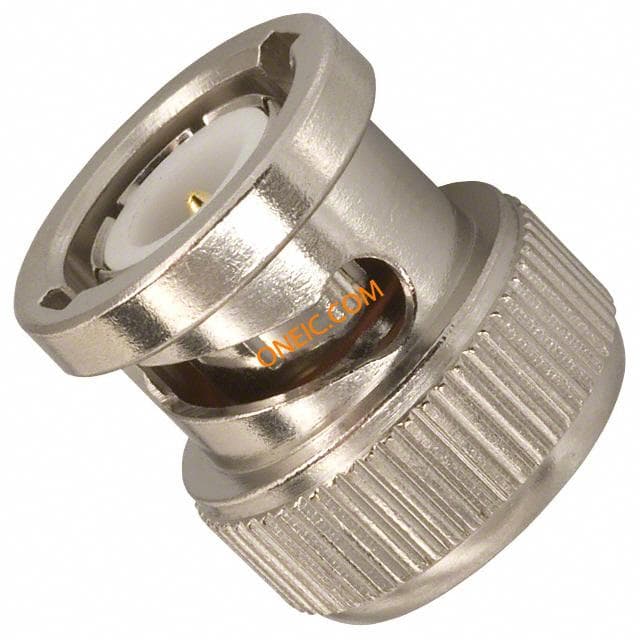

Connector Accessories BNC Male Cap CONN CAP BNC MALE NO CHAIN RF Connector Accessories BNC TERMINATOR MALE CAP NO CHAIN Coaxial/RF; Cap-NoChain; BNC; Terminator; Male; Brass; forFemaleConnector; Straight CONN CAP (COVER) FOR BNC JACKS
202114
amphenol connex
Connector Accessories BNC Male Shorting Cap Brass Nickel Finish CONN BNC PLUG SHORTING CAP connector accessory;rf coaxial;bnc male shorting cap less chain;for jacks&recept RF Connector Accessories BNC MALE SHORTING CAP RF/COAXIAL SHORTING CAP Coaxial/RF; Cap-NoChain; BNC; Shorting; Male; Brass; forBNCFemale; Straight
202100
Amphenol Connex

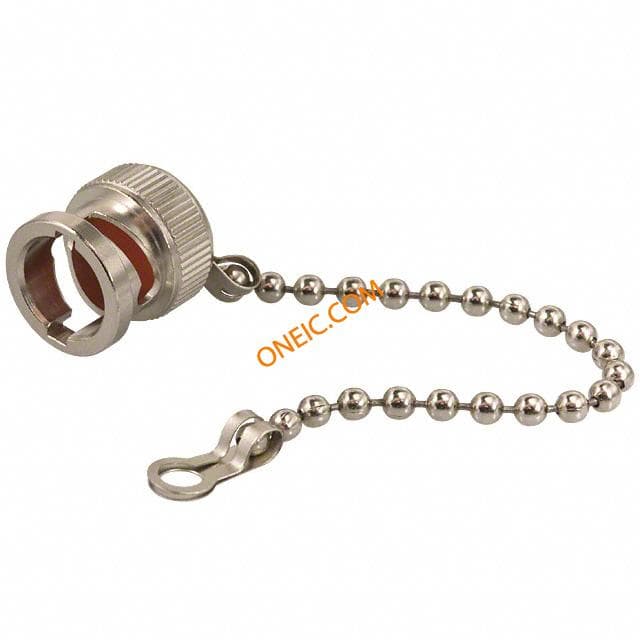

RF Connectors BNC MALE CAP AND CHAIN Connector Accessories BNC Male Cap with Chain Brass Nickel Finish CONN BNC PLUG CAP & CHAIN connector accessory;rf coaxial;bnc male cap & chain;for jacks and receptacles RF Connector Accessories BNC MALE CAP AND CHAIN Connector Accessories BNC Male Cap And Chain Nickel DUST CAP, BRASS Coaxial/RF; Cap-w/Chain; BNC; Protective; Male; Brass; forJacksandRecep; Straight 202100 BNC Male Cap with Chain
