112352
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC PL 0Hz to 4GHz 50Ohm Solder ST Cable Mount Gold CONN BNC PLUG STR 50 OHM CRIMP RF Connectors / Coaxial Connectors BNC ST PLUG RG58 50 OHM DC/DL RF/COAXIAL, BNC PLUG, STR, 50 OHM, CLAMP BNC, BNC STRGHT PLG RG58-50~DC/DL |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Bayonet |
| 最大频率 | 4GHz | ||
机械参数
| 重量 | 0.035274 oz | 包装方式 | Bulk |
| 电缆类型 | RG-58, RG-58A, RG-58C, RG-141, RG-303, LMR195, Belden 7806A | 本体表面处理 | Nickel |
| 电缆组 | RG-58, LMR-195 | 方向 | Straight |
| 端接方式 | Solder | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Cable Mount |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 连接器样式 | BNC |
| 触头材料 | Brass | 端接样式 | Cable - Clamp |
| 屏蔽层端接方式 | Clamp | 接触件端接 | Crimp |
| 介电材料 | Polyoxymethylene (POM) Acetal | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | :Straight Plug |
产品信息
| 类型 | BNC | 连接器性别 | PL |
| 极性 | Standard | 连接类型 | Flexible Cable |
| 射频系列/标准 | 112352 | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 40 C to + 155 C |
文档与媒体
相关型号
112713
amphenol connex
Connector Accessories BNC Female Cap With Chain Brass Nickel Finish CONN BNC FEMALE CAP W/CHAIN connector accessory;rf coaxial;bnc female cap and 100mm chain;for plugs RF Connector Accessories BNC JACK CAP AND CHAIN CAP, BNC COAXIAL CONNECTOR
31-2-RFX
Amphenol RF
RF Connectors CLAMP TYPE PLUG CONN BNC PLUG STR 50 OHM SOLDER connector;rf coaxial;bnc commercial str plug;clamp/solder;rg58;141;142a;50 ohm RF Connectors / Coaxial Connectors CLAMP TYPE PLUG Conn BNC PL 0Hz to 4GHz 50Ohm Solder ST Cable Mount Gold RF/COAXIAL BNC PLUG STR 50 OHM CLAMP/SLDR 31-2-RFX BNC Male Clamp Connector, Straight

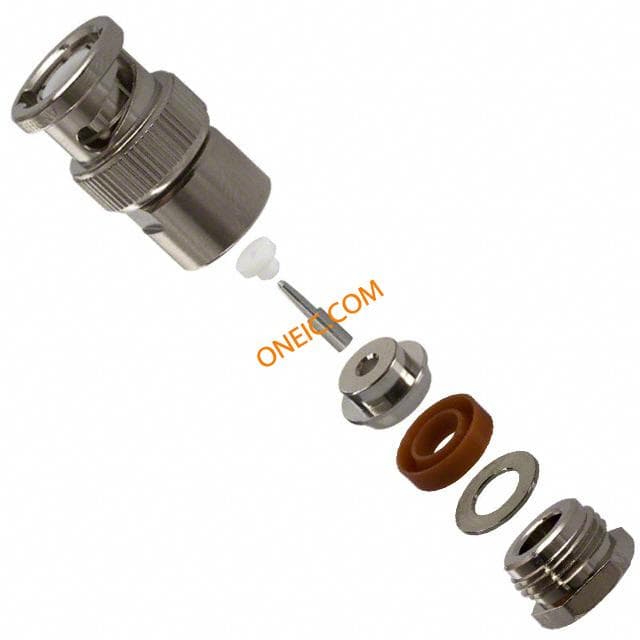

31-202
