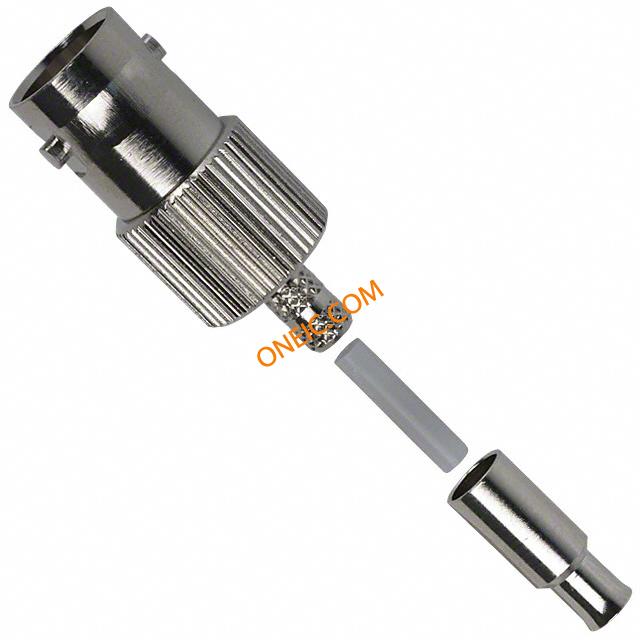

112160
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC F 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold CONN BNC JACK STR 50 OHM CRIMP connector;rf coaxial;bnc crimp straight jack;for rg174;316;LMR100 cable;50 ohm RF Connectors / Coaxial Connectors BNC STRAIGHT CRIMP JACK RG-316 174 RF/COAXIAL, BNC JACK, STR, 50 OHM, CRIMP connector, rf coaxial, bnc crimp straightjack, for rg174, 316, LMR100 cable, 50 ohm |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1044 |
| 零件号别名 | 319-0039 99H4294 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Bayonet |
| 最大频率 | 4GHz | ||
机械参数
| 重量 | 0.328048 oz | 包装方式 | Bulk |
| 电缆类型 | RG-174, RG-188A, RG-316, Belden 7805A | 本体表面处理 | Nickel |
| 电缆组 | RG-174, 316, LMR-100 | 方向 | Straight |
| 端接方式 | Crimp | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 连接器样式 | BNC |
| 连接器用途 | Bayonet | 触头材料 | Phosphor Bronze|Beryllium Copper |
| 壳体材料 | Brass | 主要材料 | BNC |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polyoxymethylene (POM) Acetal |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | BNC | 连接器性别 | F |
| 系列 | :- | 产品特性 | Captivated Contact |
| 极性 | Standard | 连接类型 | Miniature Cable/Semi-Rigid Cable |
| 射频系列/标准 | 112160 | 应用细节 | Commercial |
环境参数
| 插拔次数 | 500 | 工作温度 | - 40 C to + 155 C |
