点击放大查看

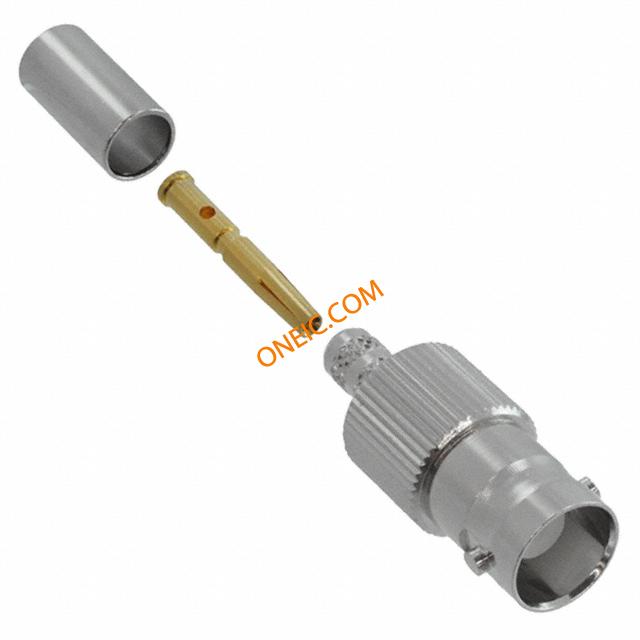

112148
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC F 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold CONN BNC JACK STR 50 OHM CRIMP RF Connectors / Coaxial Connectors BNC ST CRIMP JACK RG58 50 OHM DL BNC, BNC STR.CRP.JACK RG58-50~-DL |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX2007 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bag |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Bayonet |
| 最大频率 | 4GHz | ||
机械参数
| 重量 | 0.354151 oz | 包装方式 | Bulk |
| 电缆类型 | RG-58, RG-58A, RG-58C, RG-141, RG-303, LMR195, Belden 7806A | 本体表面处理 | Nickel |
| 电缆组 | RG-58, LMR-195 | 方向 | Straight |
| 端接方式 | Crimp | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 连接器样式 | BNC | 触头材料 | Phosphor Bronze |
| 主要材料 | BNC | 端接样式 | Cable - Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polyoxymethylene (POM) Acetal | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | ||
产品信息
| 类型 | BNC | 连接器性别 | F |
| 极性 | Standard | 连接类型 | Flexible Cable |
| 射频系列/标准 | 112148 | 应用细节 | Commercial |
环境参数
| 插拔次数 | 500 | 工作温度 | - 40 C to + 155 C |
