点击放大查看
AXS-7050-04-17
| 制造商 | Abracon, LLC |
| 描述 | CRYSTAL AND OSCILLATOR TEST & BURN-IN SOCKETS Test Sockets 7.0 x 5.0 x 1.15 Osc 4 pad test socket SOCKET 4PAD 7.0X5.0 OSCILLATOR |
| 分类 |
商业参数
| 交货时间 | 70 Days | 子类别 | Not Specified |
| 产品类别 | Test Sockets | 标准包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 颜色 | Black | 长度 | 7 mm |
| 包装方式 | Bulk | 本体尺寸 | 7.00mm x 5.00mm x 1.25mm |
| 接触镀层 | Gold | 位数 | 4 Pad |
产品信息
| 类型 | Socket, Test and Burn In | 功能 | Precision test socket for 7x5mm, 4 pad crystal packages |
| 设备类型 | Oscillator | 适用产品/相关产品 | Crystals, Oscillators |
环境参数
| 工作温度 | - 30 C to + 150 C | ||
文档与媒体
相关型号
ABMM-7.3728MHZ-B2-T
Abracon, LLC
. ABMM-7.3728MHZ-B2-T - 7.3728 MHz ±20ppm Crystal 18pF 70 Ohms 4-SMD, No Lead from Abracon LLC. from now!
ABMM-10.000MHZ-B2-T
abracon
Crystal 10MHz 18pF 4-Pin CSMD T/R CRYSTAL 10MHZ 18PF SMD Crystals +/-20ppm 10 MHZ
ABMM-14.7456MHZ-B2-T
abracon
Crystal 14.7456MHz 7pF 4-Pin CSMD T/R CRYSTAL 14.7456MHZ 18PF SMD Crystals +/-20ppm 14.7456MHZ
ABMM-19.6608MHZ-B2-T
abracon
Crystal 19.6608MHz 7pF 4-Pin CSMD T/R CRYSTAL 19.6608MHZ 18PF SMD Crystals +/-20ppm 19.6608MHZ ABMM Series 19.6608 MHz 0 ppm 18 pF -20 to +70 SMT Microprocessor Crystal
ABMM-24.000MHZ-B2-T
Abracon, LLC
. ABMM-24.000MHZ-B2-T - 24 MHz ±20ppm Crystal 18pF 40 Ohms 4-SMD, No Lead from Abracon LLC. from now!
ABMM-24.576MHZ-B2-T
Abracon, LLC
. ABMM-24.576MHZ-B2-T - 24.576 MHz ±20ppm Crystal 18pF 40 Ohms 4-SMD, No Lead from Abracon LLC. from now!
ABMM-25.000MHZ-B2-T
abracon
Crystal 25MHz 18pF 4-Pin CSMD T/R Crystal 25MHz ±20ppm (Tol) ±50ppm (Stability) 18pF FUND 40Ohm 4-Pin CSMD T/R CRYSTAL 25MHZ 18PF SMD Crystals +/-20ppm 25MHZ Crystal 25MHz �20ppm (Tol) �50ppm (Stability) 18pF FUND 40Ohm 4-Pin CSMD T/R CRYSTAL, 25M, 18PF CL, 7.2X5.2 SMT
ABMM-27.000MHZ-B2-T
abracon
Crystal 27MHz 18pF 4-Pin CSMD T/R CRYSTAL 27MHZ 18PF SMD Crystals +/-20ppm 27MHZ
ABMM-32.000MHZ-B2F-T
abracon
MICROPROCESSOR CRYSTALS CERAMIC SURFACE MOUNT MINIATURE CRYSTAL 32MHZ 18PF SMD Crystals 32.000MHZ 10pF 20ppm ABMM Series 32 MHz 0 ppm 18 pF -20 to +70 SMT Ceramic Quartz Crystal
ABMM-12.000MHZ-B2-T
Abracon, LLC
. ABMM-12.000MHZ-B2-T - 12 MHz ±20ppm Crystal 18pF 50 Ohms 4-SMD, No Lead from Abracon LLC. from now!
ABMM-16.9344MHZ-B2-T
abracon
Crystal 16.9344MHz 7pF 4-Pin CSMD T/R CRYSTAL 16.9344MHZ 18PF SMD Crystals +/-20ppm 16.9344MHZ Microprocessor Crystal

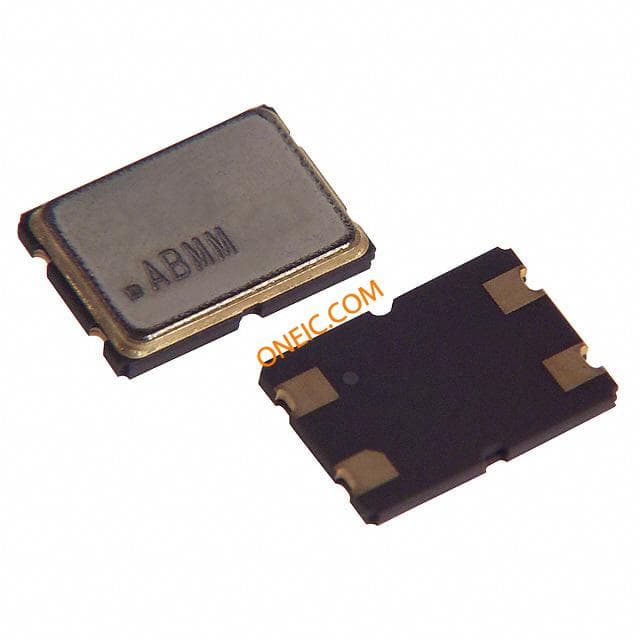

ABMM-20.000MHZ-B2-T
